High Performance 304 Stainless Steel Tripod Turnstile Gate with 510mm Arm Length and 1200*220*980mm Specifications

High Performance 304 Stainless Steel Tripod Turnstile Gate with 510mm Arm Length and 1200*220*980mm Specifications

high performance Tripod Barrier Gate

high performance Drop Arm Turnstile

304 Tripod Barrier Gate

Place of Origin:

shenzhen

Brand Name:

cxt

Certification:

Single label product appearance patent

Model Number:

CXT-SW120YS

Contact Us
Request A Quote
High Performance 304 Stainless Steel Tripod Turnstile Gate with 510mm Arm Length and 1200*220*980mm Specifications
High Performance 304 Stainless Steel Tripod Turnstile Gate with 510mm Arm Length and 1200*220*980mm Specifications High Performance 304 Stainless Steel Tripod Turnstile Gate with 510mm Arm Length and 1200*220*980mm Specifications High Performance 304 Stainless Steel Tripod Turnstile Gate with 510mm Arm Length and 1200*220*980mm Specifications High Performance 304 Stainless Steel Tripod Turnstile Gate with 510mm Arm Length and 1200*220*980mm Specifications High Performance 304 Stainless Steel Tripod Turnstile Gate with 510mm Arm Length and 1200*220*980mm Specifications High Performance 304 Stainless Steel Tripod Turnstile Gate with 510mm Arm Length and 1200*220*980mm Specifications High Performance 304 Stainless Steel Tripod Turnstile Gate with 510mm Arm Length and 1200*220*980mm Specifications High Performance 304 Stainless Steel Tripod Turnstile Gate with 510mm Arm Length and 1200*220*980mm Specifications High Performance 304 Stainless Steel Tripod Turnstile Gate with 510mm Arm Length and 1200*220*980mm Specifications
Product Details
Material:
304 Stainless Steel,thickness Is No Less Than 1.52mm
Arm Length:
510mm,60~90cm,500(mm),55cm
Weight:
140kg/2sets,45kg,45.00Kg
Working Environment:
Indoor/Outdoor (with A Tent Over),-10-70 Degree,indoor / Outdoor,Indoor & Outdaoor
Front Light:
Waterproof LED Light Strip
Mainboard Waterproof:
Level 3
Highlight:

high performance Tripod Barrier Gate

,

high performance Drop Arm Turnstile

,

304 Tripod Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
1
Price
90~3500USD
Packaging Details
Cartons and wooden boxes
Delivery Time
20 working days
Payment Terms
Public Account
Supply Ability
500ps
RELATED PRODUCTS
Good price RFID Electronic Tripod Turnstile Gate Entrance Access Control Turnstile Gate online Video

RFID Electronic Tripod Turnstile Gate Entrance Access Control Turnstile Gate

Get Best Price
Good price Fully Automatic Tripod Security Gates Anti Collision With Remote Control online Video

Fully Automatic Tripod Security Gates Anti Collision With Remote Control

Get Best Price
Good price Vertical Tripod Turnstile Gate Stainless Steel With TCP/IP Communication Interface online Video

Vertical Tripod Turnstile Gate Stainless Steel With TCP/IP Communication Interface

Get Best Price
Good price High Speed Automatic Tripod Turnstile Access Control 1000mm Height Waterproof online Video

High Speed Automatic Tripod Turnstile Access Control 1000mm Height Waterproof

Get Best Price
Contact Us
Contact Now
Product Description

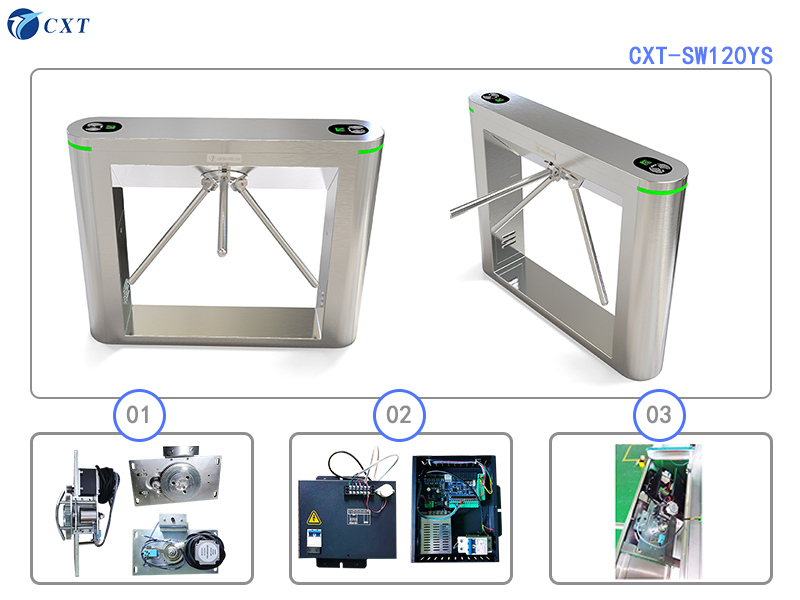

High Performance 304 Tripod Barrier Gate Drop Arm Turnstile With Light Strip
Light strip multi-color 304 brushless motor Tripod turnstile CXT-SW120YS
Model CXT-SW120YS
Material National standard 304 stainless steel (can be customized 201 stainless steel, iron paint)
Specifications 1200*220*980mm
Pole length 510mm
Process Produced by bending, cutting, welding, polishing, grinding and other processes
High Performance 304 Stainless Steel Tripod Turnstile Gate with 510mm Arm Length and 1200*220*980mm Specifications 0 High Performance 304 Stainless Steel Tripod Turnstile Gate with 510mm Arm Length and 1200*220*980mm Specifications 1 High Performance 304 Stainless Steel Tripod Turnstile Gate with 510mm Arm Length and 1200*220*980mm Specifications 2 High Performance 304 Stainless Steel Tripod Turnstile Gate with 510mm Arm Length and 1200*220*980mm Specifications 3
Chuangxintong CXT-SW120YS fully automatic brushless Tripod turnstile has been newly upgraded with a unique appearance design, sophisticated chassis upgrade, new card swiping prompt light on the card swiping window, and personalized dynamic passage prompt on the chassis.
This product adopts a new ARM control system and advanced brushless motor industrial control circuit, unique DFC technology and scientific mechanical transmission design, plus the unique transmission technology of the brushless motor and accurate limit technology, making this product achieve a new breakthrough in appearance, performance, life, stability and cost performance!
Unique Advantages
  • Modular design of appearance, simpler structure, easier to maintain
  • Chassis upgrade, more sophisticated body
  • Using brushless motor, longer life
  • Using ARM control technology, more powerful functions and better scalability
  • Better buffering effect, greatly preventing collision and causing personal injury
  • Instant reverse thrust can better deter illegal operators
  • Higher cost performance, "high-end performance, low-end price"
Functional Description
  • Fault self-check: It has fault self-check and digital screen prompt functions
  • Automatic drop and raise: Automatic drop when power is off, automatic raise when power is on
  • Dynamic prompt: When receiving a legal pass signal, the gate bar automatically rotates about 5 degrees
  • Automatic correction: When the gate bar is not in the horizontal position due to external force, the system automatically corrects
  • Card swipe window: Unique card swipe window design, adding card swipe pass prompt
  • Light indication: Personalized high-brightness dynamic pass indication
  • Fast and wear-free: Electric power, mechanical zero wear
  • Smooth and noiseless: Smooth and stable operation, low noise
  • Anti-collision buffer function: When illegal passage or gate rush, the gate bar automatically starts braking force
  • Anti-tailgating function: Turn 120 degrees for each person passing
  • Anti-reversal function: If a reversal occurs during the passage, the gate bar will automatically start the braking force
  • Automatic reset function: It will automatically reset every 120 degrees
  • Alarm prompt function: When passing illegally or rushing the gate, an alarm prompt will be automatically issued
  • Memory function: Accurate signal memory for multiple passes
  • Standard external electrical interface for easy system integration
  • Multiple working modes available
  • Fire input: Can be connected to fire alarm signal for emergency opening
Technical Parameters
Shell material SUS304# stainless steel
Shell processing technology Laser, bending, cutting, welding, wire drawing, polishing, grinding
Specification size 1200*220*980mm
Gate rod length/thickness 510(mm)/￠38 stainless steel tube
Gate rod steering One-way, two-way
Standard input interface Relay switch signal
Motor 24V/30W DC brushless
Gate opening time 0.2 seconds
Passing speed ≥30-40 people/minute
Delay reset time ≥3S adjustable
Adaptable temperature -40℃ ～ 80℃
Adaptable humidity 5%-95%
Working environment Indoors and outdoors
Product Comparison
No Name Common series on the market Pentium series
1 Rotation mode push electric
2 Positioning principle optical coupling fixed point 1/500 decoding
3 Positioning mode positioning arm horizontal position not locked
4 Transmission mode solenoid valve motor
5 Lifting rod mode manual automatic
6 Buffer no yes
7 Anti-reverse no yes
8 Noise high no
9 Mechanical wear high no
10 Illegal alarm no yes
11 Passage prompt no yes
12 Service life 1-3 years 5-10 years
13 Door rod thickness ￠32 ￠38
14 Power off drop yes yes
15 Memory yes yes
16 Fire input yes yes
17 Feedback signal output yes yes
This security turnstile gate is formed after bending the stainless steel plate. The shape is featured as pleasing appearance, good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into the equipment with read/write facilities such as magnetic card, bar code card, ID card and IC card. As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for diverting passengers.
