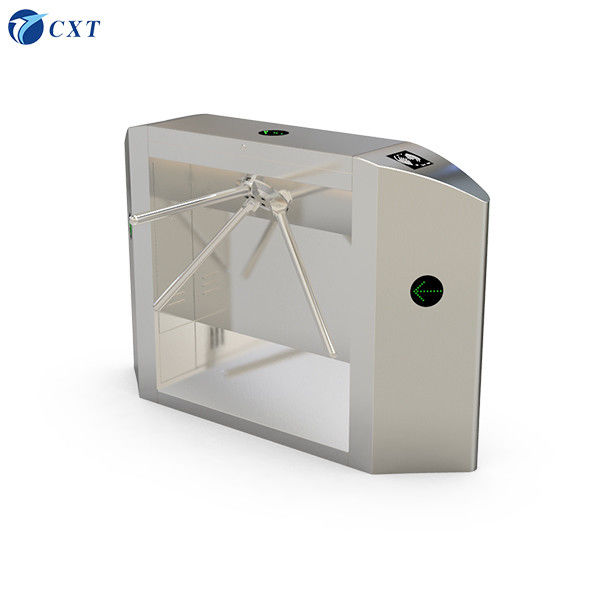

Name: Intelligent Automatic Tripod Turnstile Gate with RS485 Communication 20-30 Persons/Minute 1500x280x980mm
Brand: Shenzhen CXT Technology & Development Co., Ltd.
SKU: CXT-SW150
Price: 1,795.00 USD
Availability: InStock

Home > Products > Tripod Turnstile Gate >

Intelligent Automatic Tripod Turnstile Gate with RS485 Communication 20-30 Persons/Minute 1500x280x980mm

Intelligent Tripod Turnstile Gate

Intelligent tripod access control system

Automatic tripod access control system

Place of Origin:

shenzhen

Brand Name:

cxt

Certification:

Single label product appearance patent

Model Number:

CXT-SW150

Request A Quote

Product Details

Transit Speed:

25~32 Persons / Min,35 Persons/min,20-30 Persons Per Minute,20-30people/min(normal Close)

Interface:

RS485,TCP/IP,Dry Contact,Switch Signal

Communication:

RS232,RS485 Communication

Keyword:

Turnstile Price,Tripod Turnstile,turnstile Door

Application:

Quality Inspection,Indoor/outdoor With Tent,Company,hotel,airport

Motor:

DC Brushless Motor,30W/24V,Brusless / Brushed Optional

Highlight:

Intelligent Tripod Turnstile Gate

Intelligent tripod access control system

Automatic tripod access control system

Payment & Shipping Terms

Minimum Order Quantity

Price

90~3500USD

Packaging Details

Cartons and wooden boxes

Delivery Time

20 working days

Payment Terms

Public Account

Supply Ability

500ps

Product Description

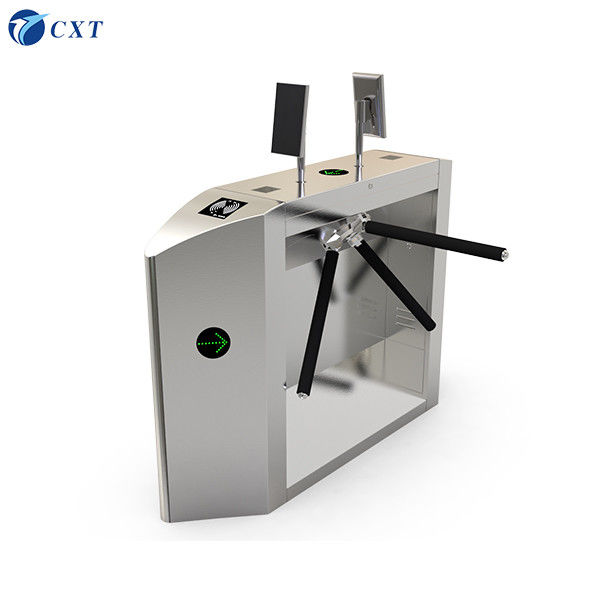

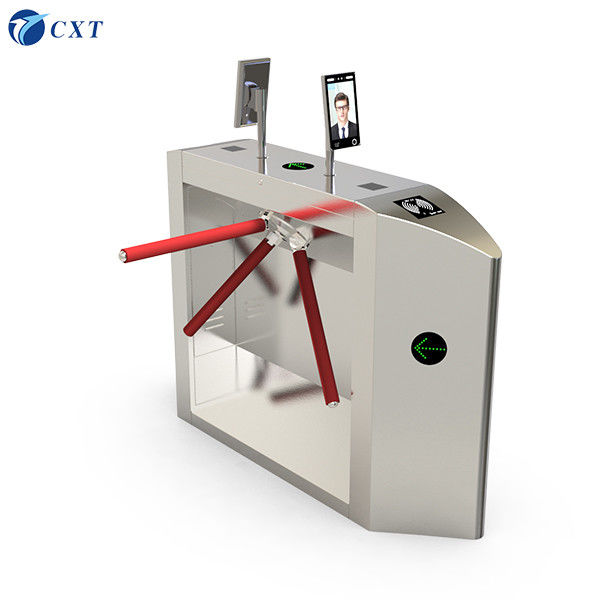

Intelligent Automatic Tripod Turnstile Gate Outdoor With DC Brushless Motor

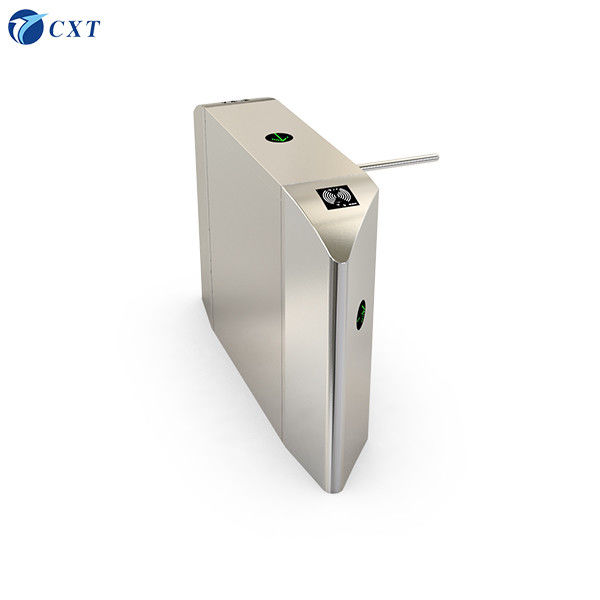

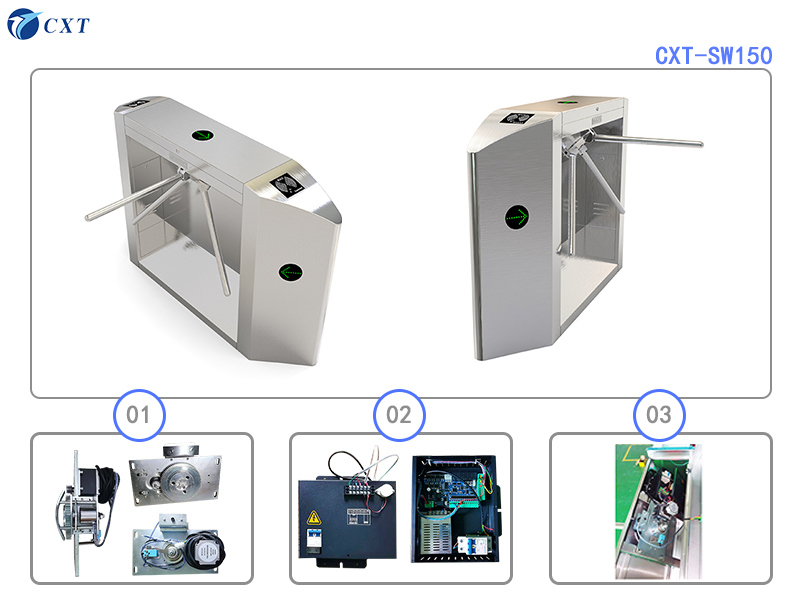

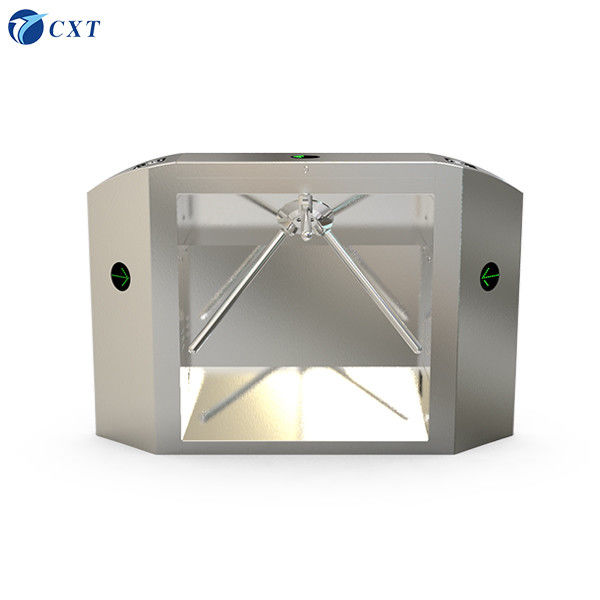

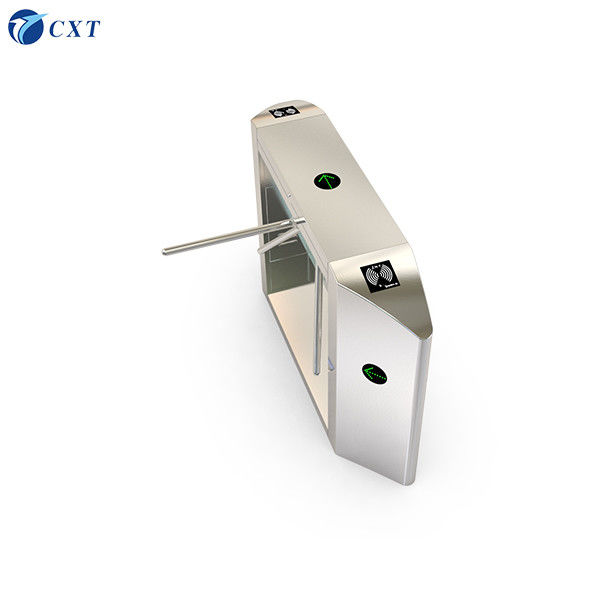

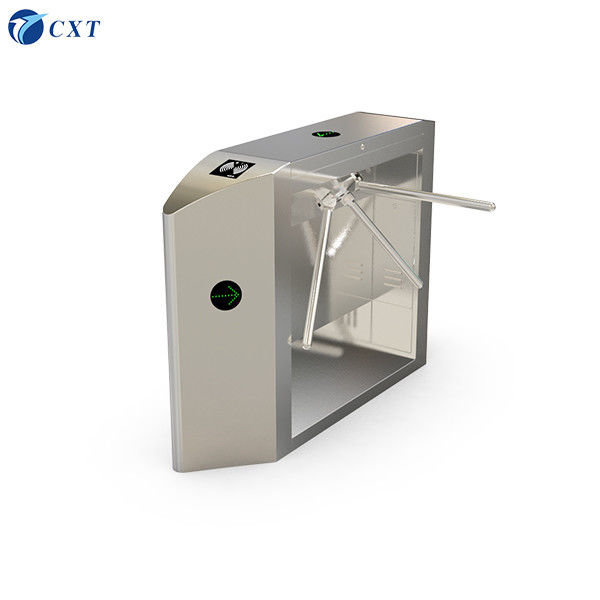

Sharp Corner Intelligent Automatic Tripod Turnstile CXT-SW150

Model	CXT-SW150
Specifications	1500280980mm
Pole length	510mm
Process	Produced by bending, cutting, welding, polishing, grinding and other processes
Material	National standard 304 stainless steel (can be customized 201 stainless steel, iron paint)

CXT-SW150 Sharp Angle Tripod Turnstile Features

Fault self-checking and alarm prompting functions for easy maintenance
Standard card reader window with external switch/remote control for one-way or two-way passage control
Automatic reset function with adjustable delay (3S, 5S, 10S, 60S)
Anti-collision function with automatic locking when no opening signal is received
Anti-tailgating function that locks after one person passes
Automatic gate-dropping during power failure for fire safety compliance
Compatibility with various card reading devices and relay switch signals
Optical working principle prevents multiple passages per card swipe
External button controls for left/right normally open functions
Remote control and management capability via computer (customizable)
Counting function for tracking number of people (customizable)

CXT-SW150 Technical Specifications

Shell material	National standard 304 stainless steel frame (customizable 201 stainless steel or iron paint)
Processing technology	Bending, cutting, welding, polishing, grinding

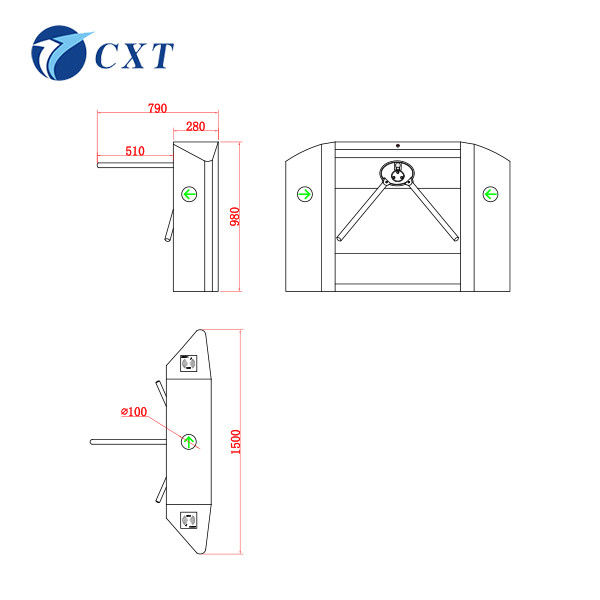

Standard dimensions	Width 280×Length 1200×Height 980 (mm)
Weight	Approximately 70Kg
Gate rod length	510mm
Maximum bearing capacity	80Kg
Working driving force	3Kg
Steering	One-way, two-way
Light prompt	High brightness traffic status indication
Working movement	12V/20W solenoid valve
Working environment	Indoor, outdoor (canopy recommended)
Temperature range	-40℃ to 80℃
Gate opening time	0.2 seconds
Passing speed	Approximately 30 people/minute
Standard input interface	Relay switch signal

Performance Comparison

No	Name	Common series on the market	Pentium series
1	Rotation mode	push	electric
2	Positioning principle	optical coupling fixed point	1/500 decoding
3	Positioning mode positioning arm	horizontal position	not locked
4	Transmission mode	solenoid valve	motor
5	Lifting rod mode	manual	automatic
6	Buffer	no	yes
7	Anti-reverse	no	yes
8	Noise	high	no
9	Mechanical wear	high	no
10	Illegal alarm	no	yes
11	Passage prompt	no	yes
12	Service life	1-3 years	5-10 years
13	Door rod thickness	￠32	￠38
14	Power off drop	yes	yes
15	Memory	yes	yes
16	Fire input	yes	yes
17	Feedback signal output	yes	yes

The Tripod Swing gate offers exceptional value, combining high-quality features with competitive pricing without compromising on performance or durability.
