Tripod turnstile CXT-SW128C

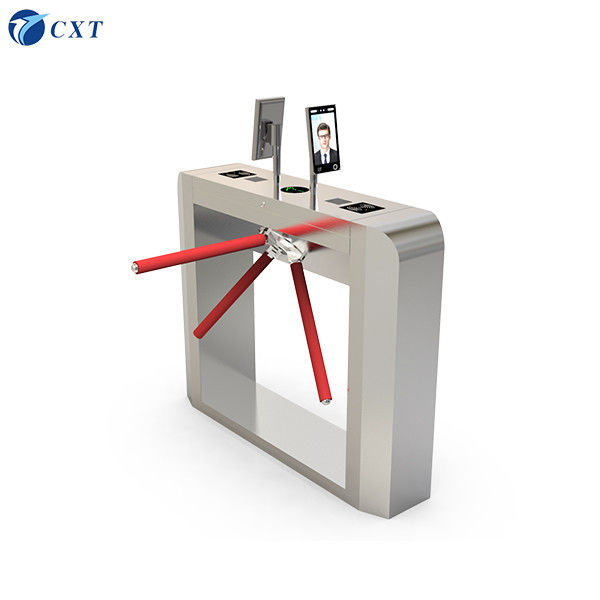

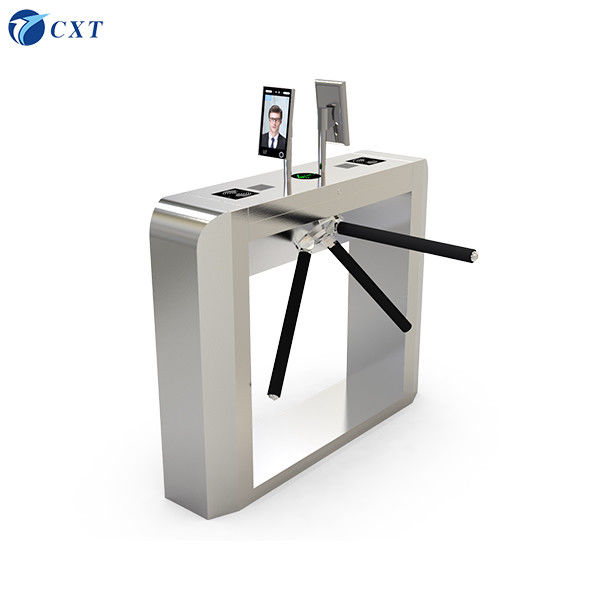

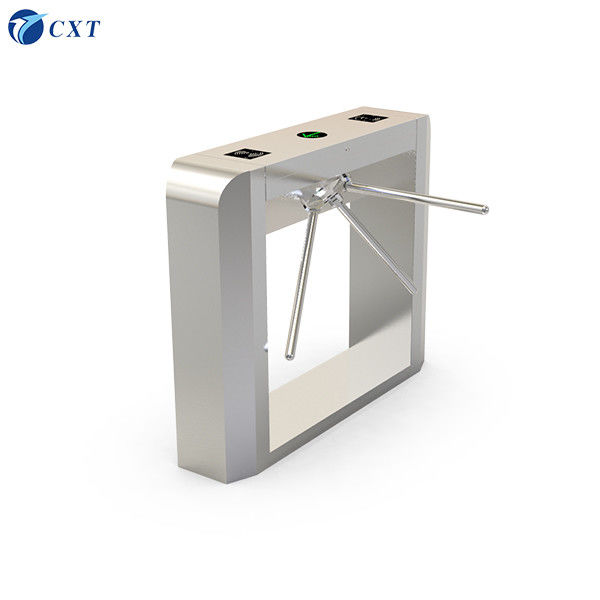

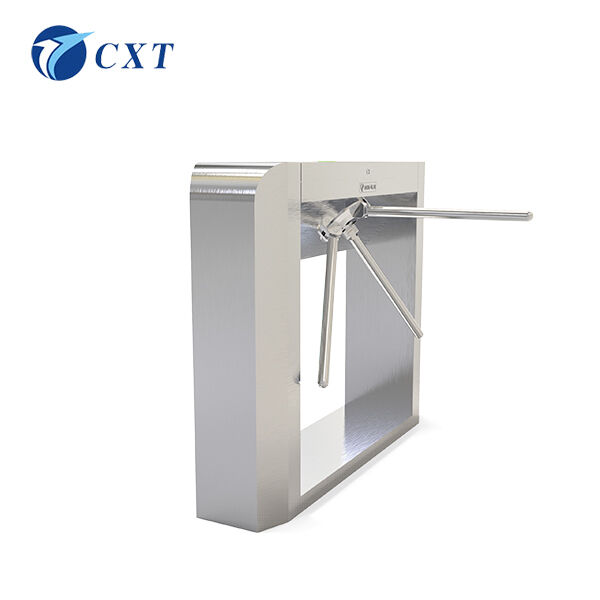

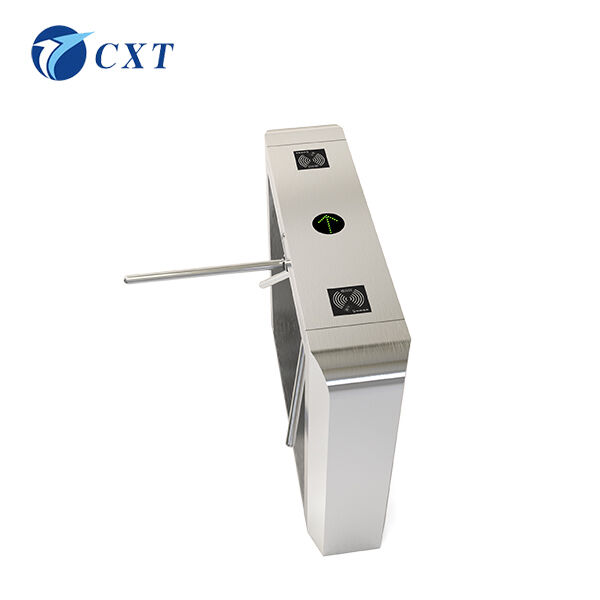

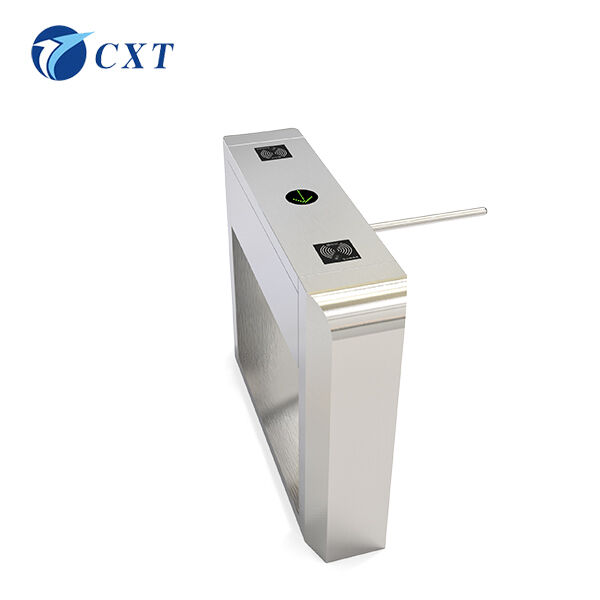

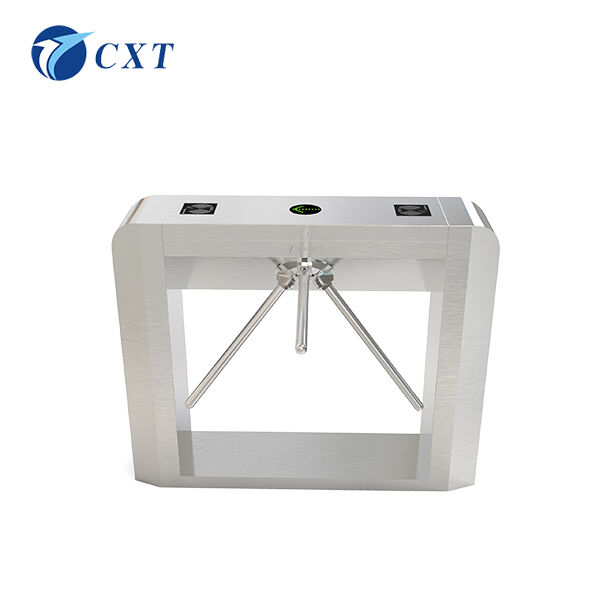

CXT-S128C Arc Three-roller Turnstile

1) The arcTripod turnstile has fault self-checking and alarm prompting functions, which is convenient for users to maintain and use;
2) It is equipped with a standard card reader window, which can be connected to an external switch button or remote control to achieve one-way or two-way control of passage;
3) The arc Tripod turnstile has an automatic reset function. When the gate lever is unlocked, it rotates 120 degrees and automatically resets (locks). Or if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass and automatically close (lock), and the delay is adjustable to 3S, 5S, 10S, and 60S.
4) Anti-collision function, the gate bar will automatically lock when no gate opening signal is received;
5) Anti-tailgating function, it will turn 120 degrees after one person passes by and automatically lock to avoid tailgating;
6) Automatic gate drop function when power is off to meet the requirements of fire management;
7) It can be connected with a variety of card reading devices and receive relay switch signals to work;
8) It adopts the optical working principle and has no delay requirements for the input control signal, which absolutely avoids the phenomenon of swiping a card to pass several people;
9) The external button can realize the left and right normally open function;
10) The external button can realize the gate drop function without power failure;
11) Remote control and management can be realized directly through the management computer (customization is required);
12) The control panel can be connected to the counting function to record the number of people present and realize the superposition or forward addition and reverse subtraction functions (customization is required).

CXT-S128C Arc Tripod turnstile

1) Arc Tripod turnstile shell material: National standard 304 stainless steel frame structure (customizable 201 stainless steel or iron paint)

2) Processing technology: Produced by bending, cutting, welding, polishing, grinding and other processes

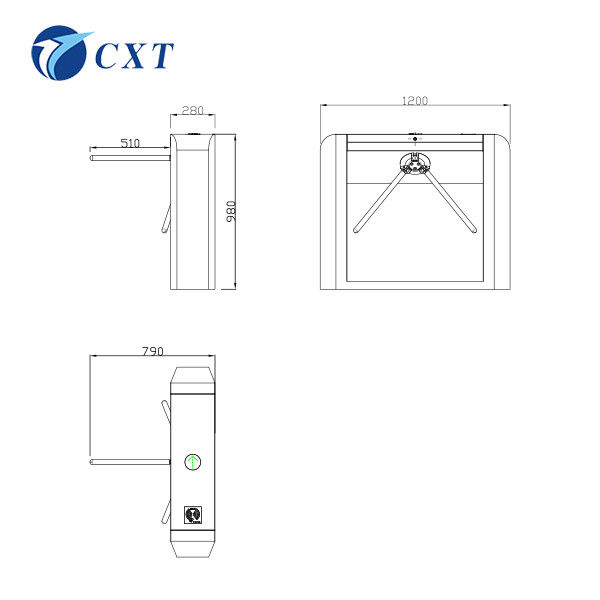

3) Standard dimensions: width 280×length 1200×height 980 (mm)

4) Weight: about 70Kg

5) Gate rod length: 510 (mm)

6) Maximum bearing capacity of the gate rod: 80Kg

7) Gate rod working driving force: 3Kg

8) Gate rod steering: one-way, two-way

9) Light prompt: high-brightness traffic status indication (normally not lit, arrow flashes when passing)

10) Working movement: 12V /20W solenoid valve

11) Working environment: indoor, outdoor (canopy recommended)

12) Adaptable temperature: -40℃ ~ 80℃
13) Emergency measures: Automatically drop the pole when power is off
14) Gate opening time: 0.2 seconds
15) Passing speed: about 30 people/minute
16) Standard input interface: relay switch signal

Frequently Asked Questions

1. What are your company's advantages in the industry?
Since its establishment in 2006, our company has been committed to the introduction and development of new technologies and new products. Its brand "CXT" has ranked among the top ten well-known parking system and facility brands in China.

2. What are your company's advantageous products?
Shenzhen Chuangxintong Technology Development Co., Ltd. is a professional high-tech enterprise integrating the research and development, production, sales and service of intelligent parking management systems, wing gates, three-roller gates, swing gates, parking guidance systems, gates, parking locks, access control systems and other related security products.

3. How is the quality of your company's products?
With superb technology and strict quality inspection system, we have passed the "CE" and "ISO9001:2008" international quality certification. The company has also won many honors such as "China's Top Ten Parking Management System Suppliers" and "China Quality, Service and Reputation AAA Enterprise". The professional R&D team has strong R&D capabilities and is committed to continuously creating high-quality products and services.

4. Can you make some customized requirements?
We support OEM/ODM service, more than 20 years of industry experience will provide you with the right design, we not only provide products, but also an expert in smart access control management solutions.

5. Do you have after-sales service agents?
If you have any product questions, you can contact our sales staff at any time. We will provide lifelong technical support. We have set up many offices in China and have many agents. Our sales and service network is all over the world, and we also have extensive sales channels in Southeast Asia, the Middle East, Africa, Europe and the Americas. We warmly welcome customers or agents from all over the world to join us to build a smart, safe, convenient and harmonious society together.

6. What about the delivery time?
Conventional products take 5-10 working days.
The delivery time of customized products will be based on your requirements.
