Smart Standard Tripod Turnstile Gate 1200x220x980mm with RS232/RS485 Communication and 25-32 Persons/Min Throughput

Smart 3 Arm Turnstile

Standard 3 Arm Turnstile

Standard waist height turnstile

Place of Origin:

shenzhen

Brand Name:

cxt

Certification:

Single label product appearance patent

Request A Quote

Product Details

Product Name:

Entrance And Exit Gate Card Swipe Entrance Machine Tripod Turnstile

Transit Speed:

25~32 Persons / Min,35 Persons/min,20-30 Persons Per Minute,20-30people/min(normal Close)

Working Environment:

Indoor/Outdoor (with A Tent Over),-10-70 Degree,indoor / Outdoor,Indoor & Outdaoor

Communication:

RS232,RS485 Communication

Keyword:

Turnstile Price,Tripod Turnstile,turnstile Door

Application:

Quality Inspection,Indoor/outdoor With Tent,Company,hotel,airport

Highlight:

Smart 3 Arm Turnstile

Standard 3 Arm Turnstile

Standard waist height turnstile

Payment & Shipping Terms

Minimum Order Quantity

Price

90~3500USD

Packaging Details

Cartons and wooden boxes

Delivery Time

20 working days

Payment Terms

Public Account

Supply Ability

500ps

Intelligent Security Vertical Tripod Turnstile Gate with Fault Self-Checking and Alarm Prompt

Get Best Price

Video

Intelligent Automatic Aesthetic Tripod Turnstile Gate with Brush-less Motor for Smooth Operation

Get Best Price

Video

RFID Electronic Tripod Turnstile Gate with 40 Persons/Min. Capacity and 30W/24V DC Brushless Motor

Get Best Price

Video

Fully Automatic Tripod Turnstile Gate with Anti-tailgating and Power-off Gate Drop for Secure Access Control

Get Best Price

Contact Now

Product Description

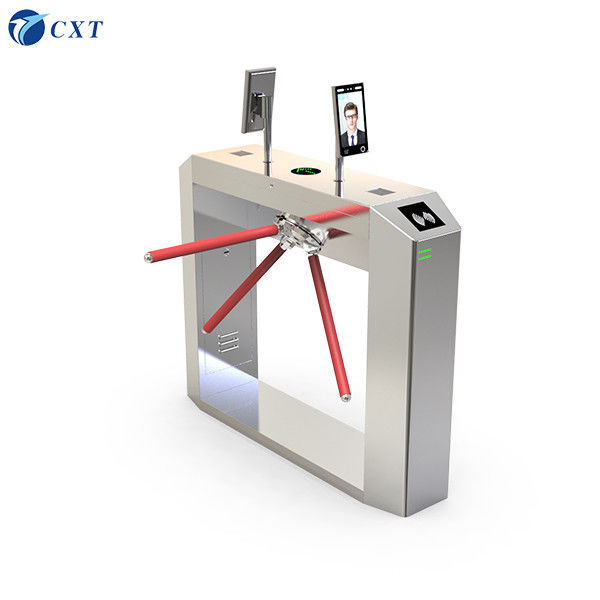

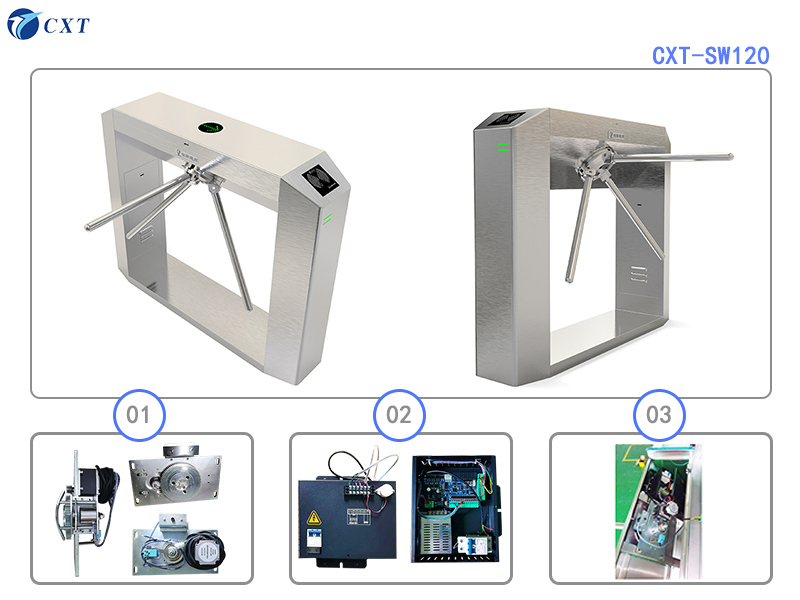

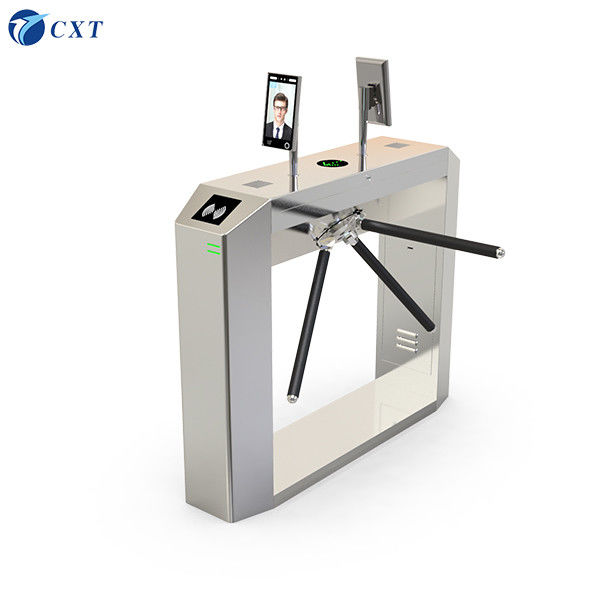

Brushless Motor Smart Standard Tripod Turnstile CXT-SW120

Product Specifications

Model	CXT-SW120 Tripod turnstile
Specifications	1200220980mm
Pole length	510mm
Process	Produced by bending, cutting, welding, polishing, grinding
Material	National standard 304 stainless steel (201 stainless steel, iron paint can be customized)

Product Features

The Chuangxintong CXT-SW120 fully automatic brushless Tripod turnstile features a newly upgraded design with sophisticated chassis, card swiping prompt light, and personalized dynamic passage indicators.

Key Advantages

Modular design for easier maintenance
Upgraded, more sophisticated chassis
Brushless motor for extended lifespan
ARM control technology for powerful functionality
Enhanced buffering to prevent collisions
Instant reverse thrust deters illegal operation
High cost-performance ratio

Advanced Functions

Fault self-check with digital screen prompts
Automatic drop when power is off, raise when power is on
Dynamic passage indication with gentle rotation
Automatic correction to horizontal position
Unique card swipe window with pass prompt
High-brightness dynamic passage indication
Smooth, noiseless operation with zero mechanical wear
Anti-collision buffer and alarm system
Anti-tailgating with reverse thrust activation
Optical working principle prevents multiple passages
Anti-reversal function with automatic reset
Memory function for faster passage processing

Technical Parameters

Shell material: SUS304# stainless steel
Processing: Laser, bending, cutting, welding, wire drawing, polishing
Size: 1200*220*980mm
Gate rod: 510mm length, ￠38 stainless steel tube
Motor: 24V/30W DC brushless
Opening time: 0.2 seconds
Passing speed: ≥30-40 people/minute
Temperature range: -40℃ to 80℃
Humidity range: 5%-95%
Suitable for indoor and outdoor use

Comparison with Common Models

No	Name	Common series	Pentium series
1	Rotation mode	push	electric
2	Positioning principle	optical coupling fixed point	1/500 decoding
3	Positioning mode	horizontal position	not locked
4	Transmission mode	solenoid valve	motor
5	Lifting rod mode	manual	automatic
6	Buffer	no	yes
7	Anti-reverse	no	yes
8	Noise	high	no
9	Mechanical wear	high	no
10	Illegal alarm	no	yes
11	Passage prompt	no	yes
12	Service life	1-3 years	5-10 years
