Name: Stainless Steel Full Height Turnstile with Access Control Integration and Customizable Head Thickness for Secure Pedestrian Gates
Brand: Shenzhen CXT Technology & Development Co., Ltd.
SKU: cxt999
Price: 69 USD
Availability: InStock

Home > Products > Turnstile Components >

Stainless Steel Full Height Turnstile with Access Control Integration and Customizable Head Thickness for Secure Pedestrian Gates

Stainless Steel Full Height Turnstile

Access Control Integration Pedestrian Gate

Customizable Head Thickness Advertising Barrier

Place of Origin:

shenzhen

Brand Name:

cxt

Certification:

Model Number:

cxt999

Request A Quote

Product Details

Dimensions:

2200mm X 1500mm X 2400mm

Power Supply:

AC 110V/220V, 50/60Hz

Head Thickness:

1.5mm (can Be Customized)

Led Indicator:

Yes

Type:

Full Height Turnstile

Weight:

150 Kg

Temperature:

-10℃ - 50℃

Warranty:

12 Months

Installation:

Floor Mounted

Control System:

Access Control Integration

Material:

Stainless Steel

Highlight:

Stainless Steel Full Height Turnstile

Access Control Integration Pedestrian Gate

Customizable Head Thickness Advertising Barrier

Payment & Shipping Terms

Minimum Order Quantity

1ps

Price

69$

Packaging Details

boxs

Delivery Time

20day

Payment Terms

Western Union

Supply Ability

80ps

Intelligent Fully automated responsive advertising door with Face Recognition Bi-directional Pass and DC Brushless Motor for Pedestrian Channel Access Control

Get Best Price

Video

Stainless Steel Smart Advertising Gate with LED Light Box and Waterproof IP54 for Secure Pedestrian Turnstile Access

Get Best Price

Video

Stainless Steel Full Height Turnstile with Access Control Integration and Customizable Head Thickness for Secure Pedestrian Gates

Get Best Price

Intelligent Community Swing Gate Advertising Door with Remote Control High Security Level and Customizable Head Thickness

Get Best Price

Contact Now

Product Description

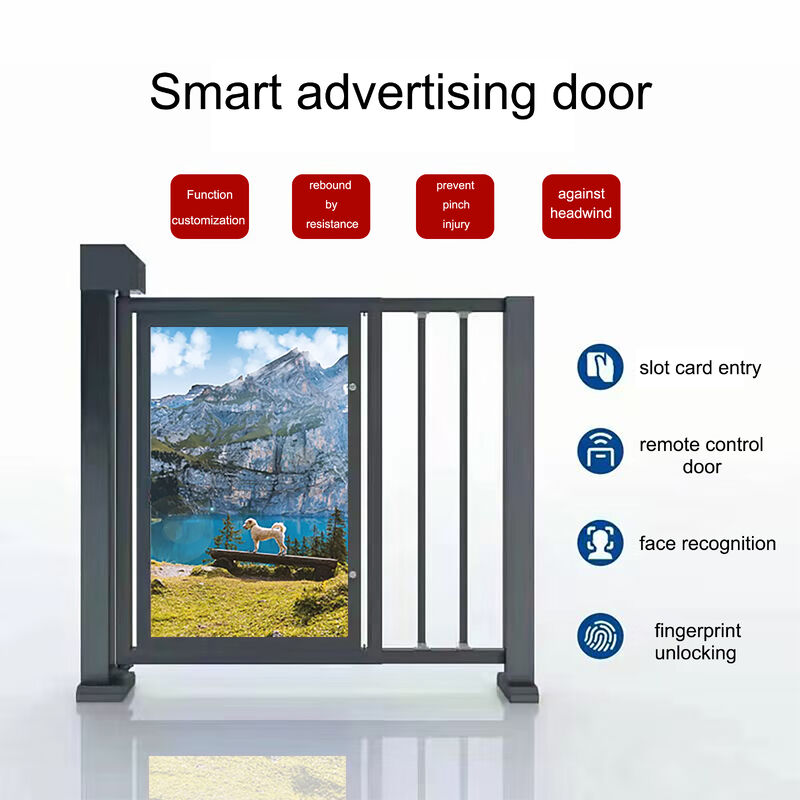

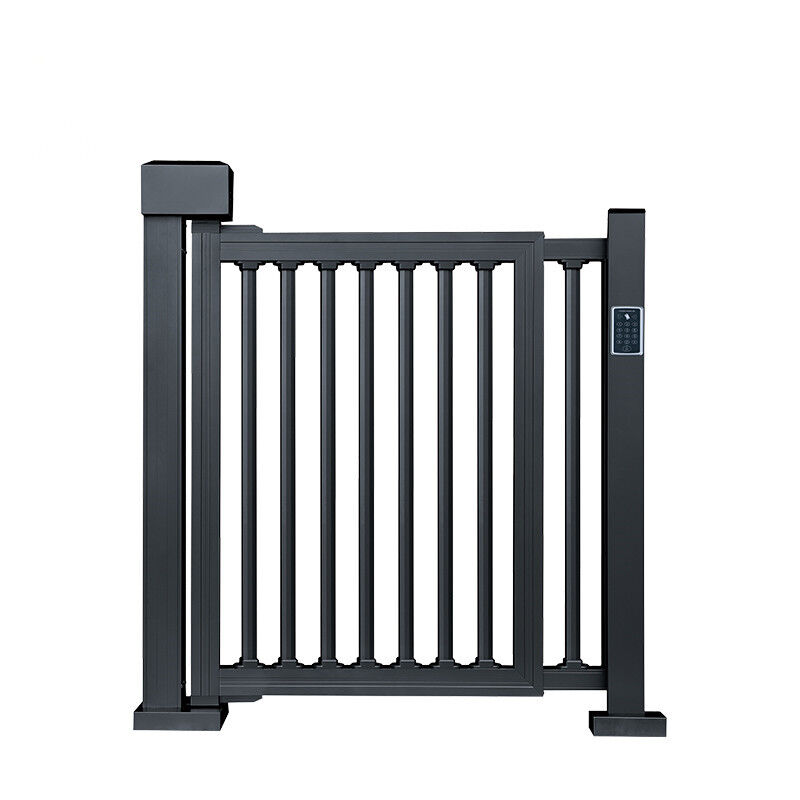

Advertising Barrier Automatic System Pedestrian Gate

A straight multi-application crowd control stanchion designed for secure and efficient pedestrian traffic management in various settings.

Product Overview

Product Name: Advertising Door
Material: Aluminum Alloy
Color: Black
Application: Outdoor
Type: Straight Barrier
Surface Treatment: Galvanized + Powder Coated

Key Advantages

Easy to Use: Simple operation with minimal training required for access control personnel
Rigorous Technology: Scientifically developed through comprehensive testing and quality control
Highly Integrated: Extensive interface compatibility for future upgrades and expansions
High Security: Advanced anti-pinch protection using infrared sensors and motor torque feedback
Fast Traffic Speed: Rapid 0.1-second response time with capacity for 30-40 people per minute

Applications

Pedestrian access swing doors
Enterprise and institutional access gates
Automatic swing doors at industrial sites
All swing doors requiring automatic opening and closing

Technical Specifications

Model No.	EF-GGM03
Material	Aluminum Alloy
Color	Black
Application	Outdoor
Usage	Multi-application Crowd Control Stanchion
Type	Straight Barrier
Surface Treatment	Galvanized + Powder Coated
Feature	Anti-corrosion
Rated Voltage	DC12V
Rated Current	6A
Maximum Load	96W
Maximum Torque	80Nm
Opening Speed	≤ 4 seconds
Applicable Door Width	≤ 2000mm
Applicable Door Weight	≤ 150kg

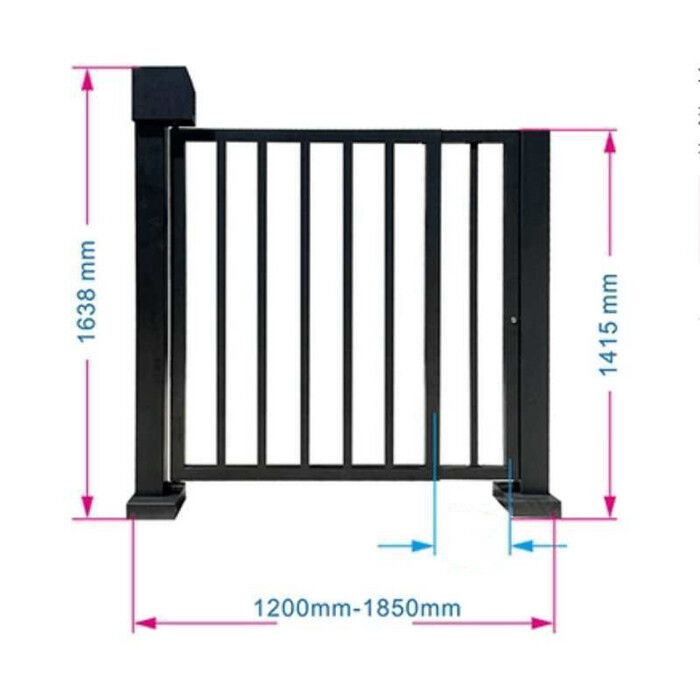

Overall Dimension	1638mm (H) × 1475mm (W)
Access Control Interface	Dry contact and wet contact
Electronic Lock	Electromagnetic lock
Continuous Switching Times	1 million times
Working Temperature/Humidity	-20℃ ~ 50℃ ≤ 85%
IP Grade	IP43 (dustproof and waterproof)

Basic Functions

Dual working modes: Automatic and Normally Open
Compatible with radar, infrared, password keyboard, fingerprint and face recognition systems
Pre-set opening point with no reset required after power loss
Adjustable door opening angle and buffering settings
Resistance detection with adjustable sensitivity
Automatic closing delay with adjustable timing
Flexible installation options on lintel or door body
Green channel interface for continuous open state
Support for market-standard electronic locks

Installation Examples

Common Fault Handling

No "didi" sound after power on

Check power supply output voltage and replace if abnormal
Verify correct connection between power supply and host

Door operation not smooth with shaking

Ensure power load can drive electronic lock and motor
Check wire thickness and replace with appropriate gauge
Verify manual door movement is smooth without power
Adjust resistance sensitivity or reduce opening/closing speed

Remote control not working

Check remote control battery and replace if needed
Maintain proper distance from door machine
Re-learn remote control following proper procedure

Electronic lock issues

Confirm lock type matches system settings
Adjust locking force, buffering, or closing speed
Increase unlocking delay time if needed
Replace electronic lock if damaged
