Name: Acrylic Swing Barrier Gate with Brushless Motor Anti-Collision and Colored Lights for Indoor Access Control
Brand: Shenzhen CXT Technology & Development Co., Ltd.
SKU: CXT-BW135
Price: 1,795.00 USD
Availability: InStock

Home > Products > Swing Barrier Gate >

Acrylic Swing Barrier Gate with Brushless Motor Anti-Collision and Colored Lights for Indoor Access Control

Acrylic Swing Barrier Gate

Acrylic Pedestrian Barrier Gate

Indoor Swing Barrier Gate I

Place of Origin:

shenzhen

Brand Name:

cxt

Certification:

Single label product appearance patent

Model Number:

CXT-BW135

Request A Quote

Product Details

Temperature:

-10℃ - 50℃

Operating Humidity:

≤95% No Condensation

Working Environments:

Indoor Outdaoor

Color:

Black

Thick Of Steel:

1.5mm

Packing:

Carton/ Wooden Box

Highlight:

Acrylic Swing Barrier Gate

Acrylic Pedestrian Barrier Gate

Indoor Swing Barrier Gate I

Payment & Shipping Terms

Minimum Order Quantity

Price

90~3500USD

Packaging Details

Cartons and wooden boxes

Delivery Time

20 working days

Payment Terms

Public Account

Supply Ability

500ps

Intelligent Full-Automatic Brushless Motor Swing Barrier Gate with Anti-Collision and Stainless Steel 304 Construction for Secure Access Control

Get Best Price

Video

Smart Supermarket Swing Barrier Gate with Brushless Motor Anti-Collision and Face Recognition Access Control System

Get Best Price

Video

Anti Pinch Swing Barrier Gate with Brushless Motor and 304 Stainless Steel Construction for Secure Access Control

Get Best Price

Video

Acrylic Swing Barrier Gate with Brushless Motor Anti-Collision and Colored Lights for Indoor Access Control

Get Best Price

Contact Now

Product Description

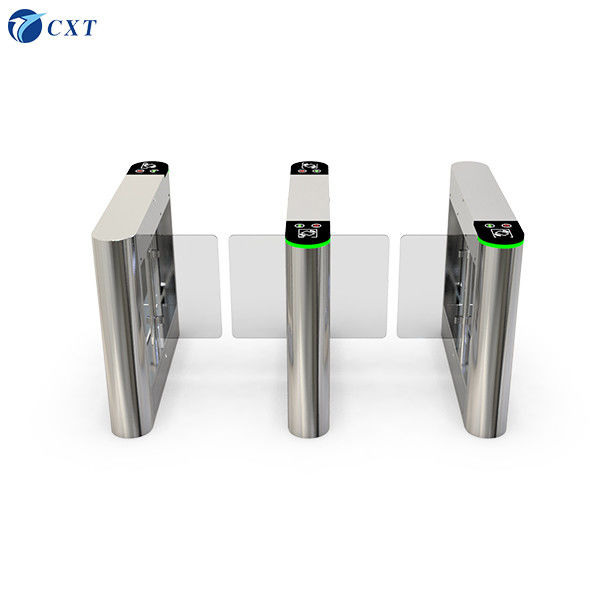

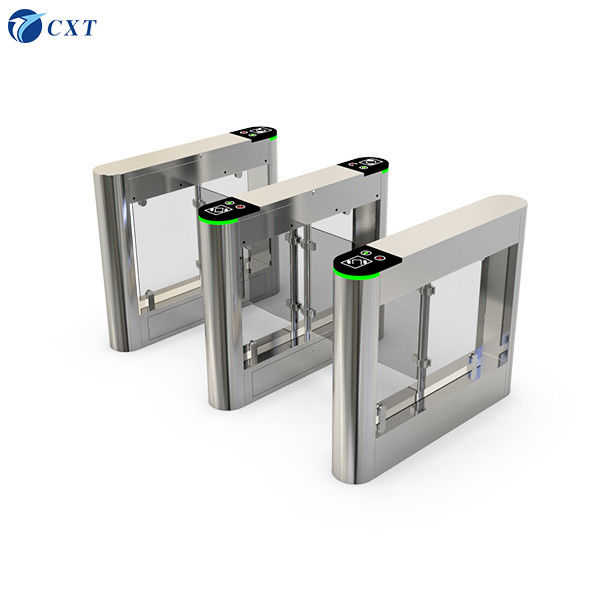

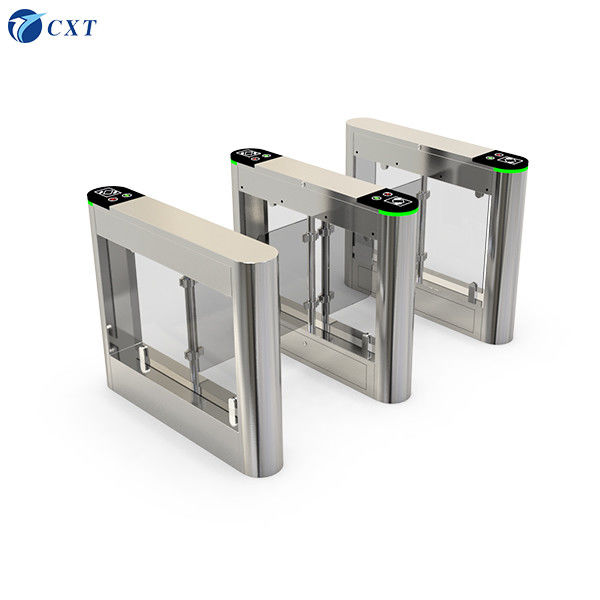

Acrylic Swing Barrier Gate Indoor Automatic With Colored Lights 135C

Brushless motor anti-collision acrylic swing arm lamp with colored lights Swing Gate CXT-BW135C

Model	CXT-BW135c

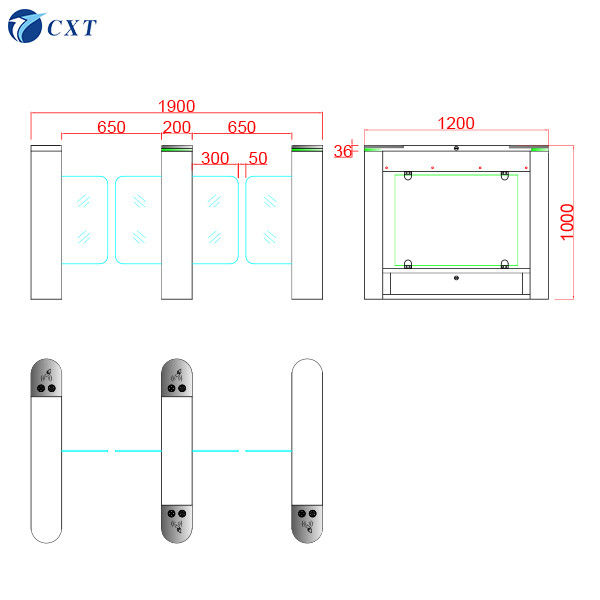

Specifications	1200x200x1000mm
Pole length	600mm (standard) -900mm/stainless steel tube/acrylic plate
Process	laser, bending, cutting, welding, polishing, grinding, etc.
Material	304 stainless steel

Imported swing gate Exported swing gate Top ten swing gate brands Face recognition swing gate Card swing gate QR code swing gate Application of swing gate Swing gate manufacturer Swing gate system solution Repair of swing gate Maintenance of swing gate Installation of swing gate Swing gate case Swing gate picture

CXT-BW135 Swing Gate Features

Self-check for faults, alarm for illegal passage
Free setting of single and two-way control for passage
High-brightness light for passage prompt, more intuitive for passage
Automatic reset, automatic reset after each swing of 90 degrees and detection of people and objects passing
Anti-tailgating, anti-reverse, alarm for illegal entry
Unattended: the swing arm is automatically open when power is off, and automatically reset when power is on
Fire input: It can be connected to the fire alarm signal to achieve uninterrupted power-off and pole opening
Industrial-grade ARM control system, with additional multi-functional digital setting, encryption and reset functions
Modular design, easy maintenance
Anti-buffering, self-protection is safer
Brushless intelligent positioning, smoother operation, faster passage speed
Rigorous process details, higher appearance

Technical Parameters of CXT-BW135 Swing Gate

Shell material: SUS304 high-quality stainless steel
Motor: brushless motor
Shell processing technology: laser, bending, cutting, welding, polishing, grinding, etc.
Weight: single about 50KG, double about 70KG
Channel net width: 650mm (pedestrian), 900mm (car)
Swing arm material: stainless steel tube or acrylic plate
Open/close speed: 0.5-2S adjustable
Motor: 24V/30W brushless
Adaptable temperature: -20℃ ~ 80℃ (add temperature control system below -20℃)
Adaptable humidity: 5%-90%
Delay reset time: adjustable
Passing speed: ≥ 35 people/minute
Working environment: indoors and outdoors

Compatible Identification Methods & Systems

Face recognition, IC/ID card, QR code/barcode, Fingerprint recognition, ID card recognition, Ticketing system, Campus system, Community system, Gym system, Attendance system, Construction site system, LED screen

Swing Gate Comparison Table

Serial number	Name	General swing gate	Anti-collision swing gate	Brushless swing gate
1	Drive	Motor	Brushed	Brushless
2	Positioning principle	Optical coupling fixed point	1/500 decoding	Brushless intelligent positioning
3	Positioning method	Gear positioning	Clutch positioning	Intelligent reverse thrust no lock
4	Buffer	No	Primary buffer	Continuous buffer
5	Anti-reverse	No	Yes	Yes
6	Running speed	Uniform speed	Deceleration	Acceleration and deceleration
7	Mechanical wear	Large	No	Small
8	Illegal mechanical alarm	(no infrared) No	Yes	Yes
9	Service life	1-3 years	3-5 years	5-10 years
10	Transmission life	3 million times	5 million times	10 million times
11	Parameter setting	Dial code	Dial code	Digital button
12	Memory	No	Yes	Yes
13	Fire input	Yes	Yes	Yes
14	Feedback signal output	Yes	Yes	Yes
15	Power off	Normally open	Yes	Yes
