Smart Supermarket Swing Barrier Gate with Brushless Motor Anti-Collision and Face Recognition Access Control System

Smart Supermarket Swing Barrier Gate with Brushless Motor Anti-Collision and Face Recognition Access Control System

Smart Swing Arm Barriers

Supermarket Swing Arm Barriers

Supermarket Swing Barrier Gate

Place of Origin:

shenzhen

Brand Name:

cxt

Certification:

Single label product appearance patent

Model Number:

CXT-BW130M

Contact Us
Request A Quote
Smart Supermarket Swing Barrier Gate with Brushless Motor Anti-Collision and Face Recognition Access Control System
Smart Supermarket Swing Barrier Gate with Brushless Motor Anti-Collision and Face Recognition Access Control System Smart Supermarket Swing Barrier Gate with Brushless Motor Anti-Collision and Face Recognition Access Control System Smart Supermarket Swing Barrier Gate with Brushless Motor Anti-Collision and Face Recognition Access Control System Smart Supermarket Swing Barrier Gate with Brushless Motor Anti-Collision and Face Recognition Access Control System
Product Details
Product Name:
Supermarket Security Access Control System Swing Barrier Gates,PD132 Single Loop Detector,Door Access Control System,security Swing Barrier Turnstile Gates,fancy Swing Barrier Passage Gates With Face Recognition Device
Power Supply:
DC12V,DC24V,AC100V-240V,AC110/AC220+/-10%,AC220V±10% 50HZ
Communication:
RS485,Weigand,TCP/IP,RS485 Or TCP/IP
Type:
NO\NC\COM,auto,Mechanical Automatic,JCA- B06BD (Semi-auto),Fully Automatic
Working Environment:
Indoor / Outdoor ( Shelter),-10-50℃,indoor And Outdoor With Shed
Application:
Office\School\Airport\Subway\Outdoor,Apartment Door,Outdoor,Identification
Highlight:

Smart Swing Arm Barriers

,

Supermarket Swing Arm Barriers

,

Supermarket Swing Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
1
Price
90~3500USD
Packaging Details
Cartons and wooden boxes
Delivery Time
20 working days
Payment Terms
Public Account
Supply Ability
500ps
RELATED PRODUCTS
Good price Intelligent Full-Automatic Brushless Motor Swing Barrier Gate with Anti-Collision and Stainless Steel 304 Construction for Secure Access Control online Video

Intelligent Full-Automatic Brushless Motor Swing Barrier Gate with Anti-Collision and Stainless Steel 304 Construction for Secure Access Control

Get Best Price
Good price Smart Supermarket Swing Barrier Gate with Brushless Motor Anti-Collision and Face Recognition Access Control System online Video

Smart Supermarket Swing Barrier Gate with Brushless Motor Anti-Collision and Face Recognition Access Control System

Get Best Price
Good price Anti Pinch Swing Barrier Gate with Brushless Motor and 304 Stainless Steel Construction for Secure Access Control online Video

Anti Pinch Swing Barrier Gate with Brushless Motor and 304 Stainless Steel Construction for Secure Access Control

Get Best Price
Good price Acrylic Swing Barrier Gate with Brushless Motor Anti-Collision and Colored Lights for Indoor Access Control online Video

Acrylic Swing Barrier Gate with Brushless Motor Anti-Collision and Colored Lights for Indoor Access Control

Get Best Price
CONTACT US
Contact Now
Product Description

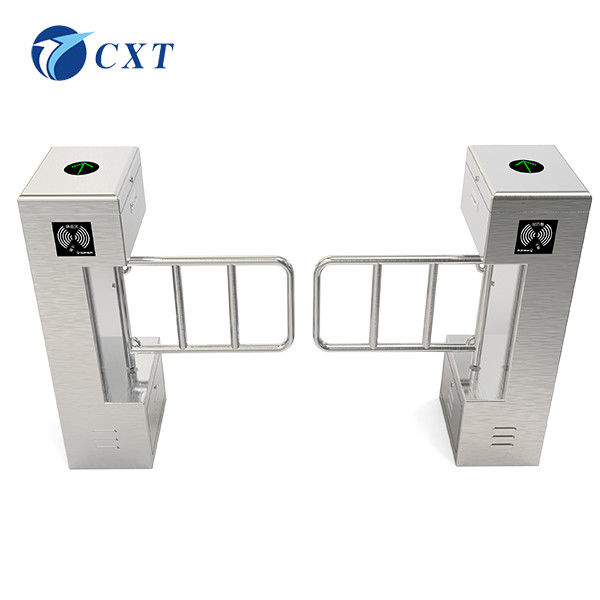

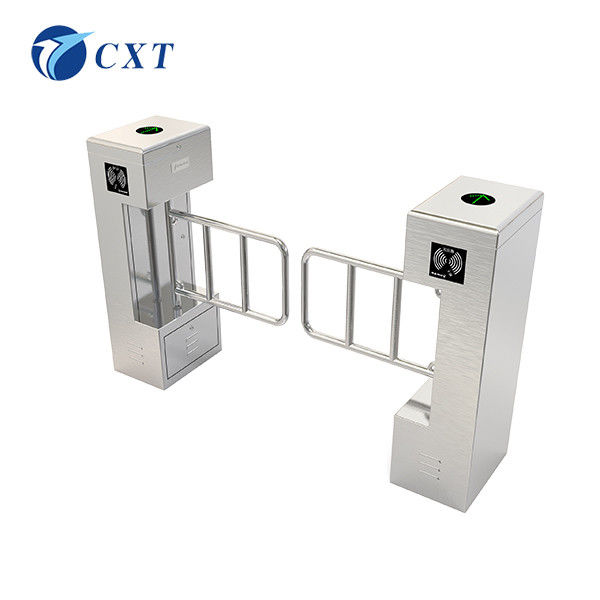

Smart Supermarket Swing Barrier Gate with Security Access Control System
Brushless Motor Anti-Collision Community Smart Bicycle Swing Gate CXT-BW130M
Model: CXT-BW130M

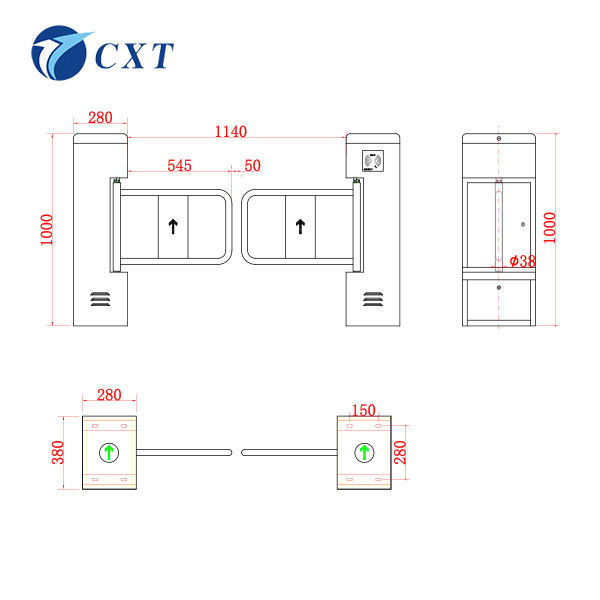

Specifications: 380*280*1000mm
Pole Length: 545mm
Manufacturing Process: Produced by bending, cutting, welding, polishing, and grinding processes
Material: National standard 304 stainless steel (customizable to 201 stainless steel or painted iron)
Related Products
Imported Swing Gate Exported Swing Gate Top Ten Swing Gate Brands Face Recognition Swing Gate Card Swing Gate QR Code Swing Gate Application of Swing Gate Swing Gate Manufacturer Swing Gate System Solution Repair of Swing Gate Maintenance of Swing Gate Installation of Swing Gate Swing Gate Case Swing Gate Picture
Smart Supermarket Swing Barrier Gate with Brushless Motor Anti-Collision and Face Recognition Access Control System 0 Smart Supermarket Swing Barrier Gate with Brushless Motor Anti-Collision and Face Recognition Access Control System 1 Smart Supermarket Swing Barrier Gate with Brushless Motor Anti-Collision and Face Recognition Access Control System 2
Chuangxintong Vertical Swing Gate Functions
  • Compatible with various card reading devices and relay switch signals
  • Sound and light alarm functions including illegal intrusion and anti-pinch alerts
  • External switch button or remote control operation for one-way or two-way passage control
  • Automatic reset function with adjustable delay settings (2S, 5S, 10S, 60S)
  • Mechanical anti-pinch protection with safe operation and automatic obstruction detection
  • Smart card access control, fingerprint access control, and face recognition systems integration
  • Adjustable switching speed from 0.8-2 seconds across 16 gear settings
  • Configurable normally open/normally closed modes via external controls
  • Power-off normally open function with adjustable swing arm direction
  • High-brightness indicator lights visible in daylight conditions
  • Humanized traffic indication with green arrow signals for legal passage
  • Synchronously adjustable swing arms for double swing configurations
CXT-B130M Vertical Swing Gate Expandable Features
  • Counting function with forward and reverse subtraction capability
  • Customizable swing arm length options
Swing Gate Technology Comparison
Feature General Swing Gate Anti-Collision Swing Gate Brushless Swing Gate
Drive System Brushed Motor Brushless Brushless
Positioning Principle Optical Coupling Fixed Point 1/500 Decoding Brushless Intelligent Positioning
Positioning Method Gear Positioning Clutch Positioning Intelligent Reverse Thrust No Lock
Buffer System No Primary Buffer Continuous Buffer
Anti-Reverse No Yes Yes
Running Speed Uniform Speed Deceleration Acceleration and Deceleration
Mechanical Wear Large No Small
Illegal Mechanical Alarm No Yes Yes
Service Life 1-3 Years 3-5 Years 5-10 Years
Transmission Life 3 Million Times 5 Million Times 10 Million Times
Parameter Setting Dial Code Dial Code Digital Button
Memory Function No Yes Yes
Fire Input Yes Yes Yes
Feedback Signal Output Yes Yes Yes
Power Off Function Normally Open Yes Yes
Company Profile
Chuangxintong adheres to the business philosophy of "integrity, innovation, and brand." With over ten years of exploration and accumulation in intelligent access gate systems, Chuangxintong breaks traditional patterns with innovative design concepts and has launched new high-tech access products including the channel boutique Pentium series (brushless swing gate, brushless three-roller gate, brushless wing gate, and high-end sliding gate).
Chuangxintong installations are nationwide across various sectors: banks, foreign companies, large state-owned enterprises, administrative units, petrochemical oil fields, passenger stations, mobile communications, prisons, smart communities, shopping malls and supermarkets, buildings/office buildings, and leisure/sports/recuperation/tourist attractions.
