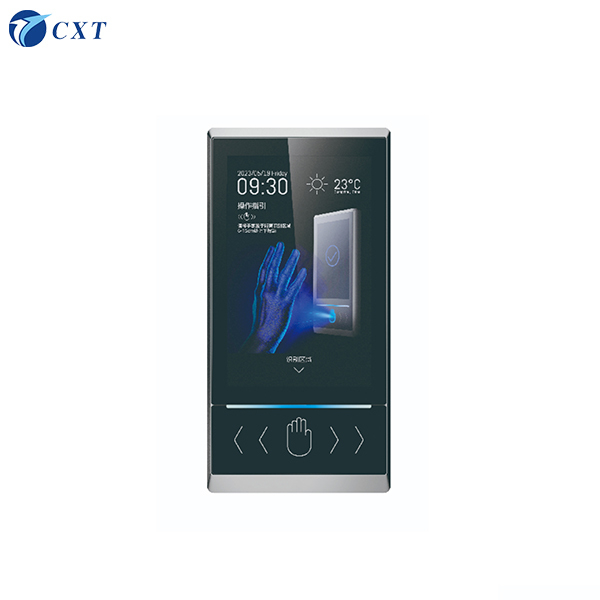

intelligent controller Model: CXT-ZJ05A

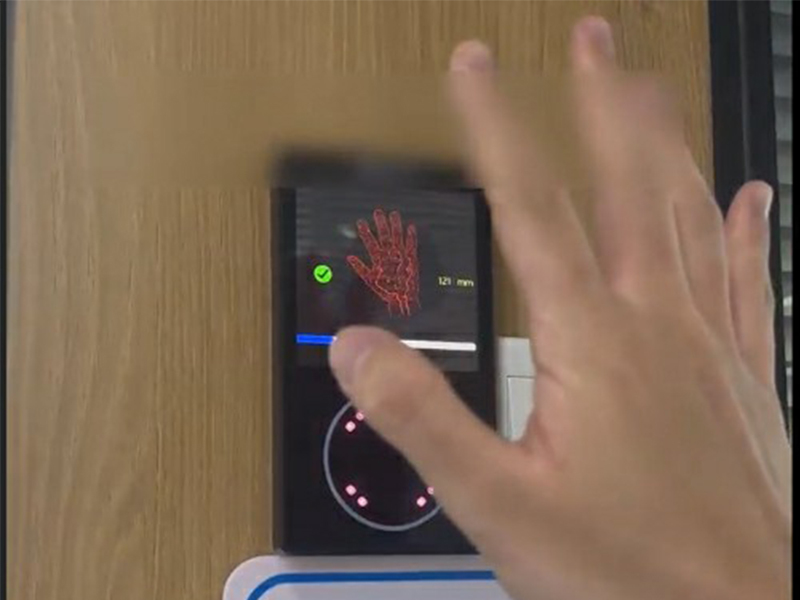

The palm vein recognition all-in-one machine CXT-ZJ05A is a high-end non-contact live palm vein recognition product. The palm can quickly passthrough the recognition area horizontally or vertically to identify the user's identity. It can achieve access control and attendance functions,with features such as non-contact, high-precision, high security, live recognition, and lifelong feature invariance. It can be

used in military, prison, finance,social security,subway, MASER

airport,scenic spots, and other scenarios

.

Product advantages

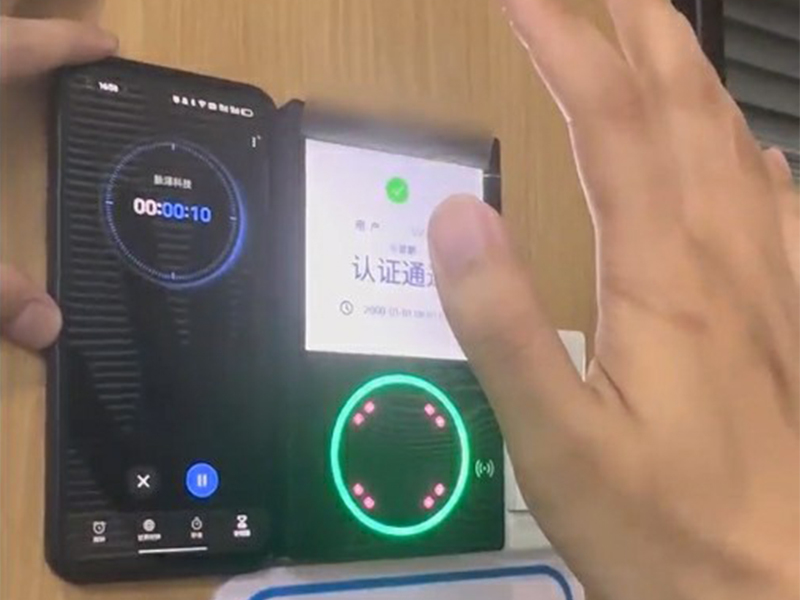

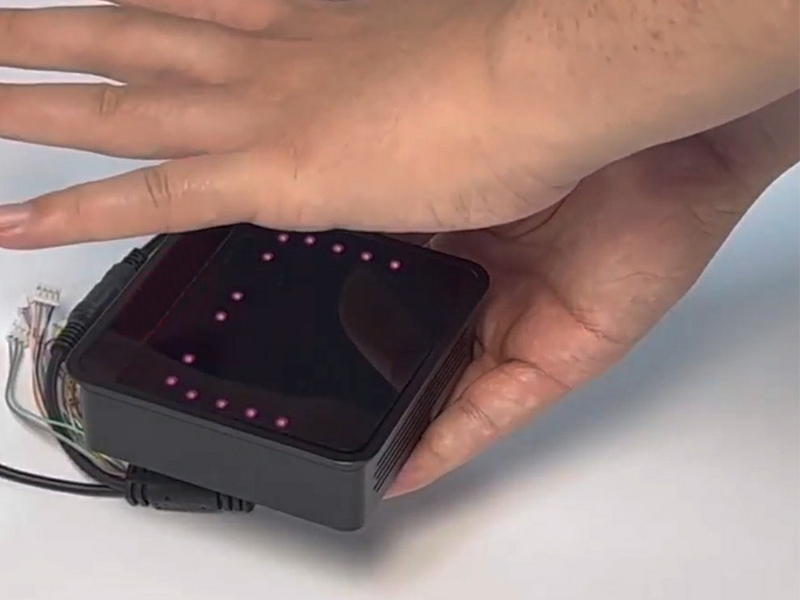

Non contact brush recognition Identify and capture the features ofthe veinsinthe palm of the hand through a Professional imaging system, realizes non contact recognition of 8-15 CM living organisms.eliminates cross touch

infections.Prevent the theft and forgery of feature information.

Ultimate user experience When paired with a high-performance

orocessor and compared with 20000 user data n the front-end. Non contact brush

ecognition only takes 100 milliseconds, with a recognition rate of 99.99%.

Flexible deployment methods Support offline and online operation of single machines, supports local comparison and services device comparison, combined with intelligentaccess controlattendance

and Visitor System to set comprehensive access controllogic and attendance rules. Ergonomically Designed

Simple and atmospheric appearance,combined with ergonomic design. meets the needs of various places Multiple installation methods provide a comfortable and comfortable user experience.

Complete communication interface Provide comprehensive standard

communication intertaces to meet various application Scenarios Communication requirements.

Living body recognition Professional multi band infrared light Acquisition system detects palm vein blood and obtains Extracting venous feature information is a true live biometric recognition technology.

Productspecifications

Recognition mode

Palmar veln, password verlflcation, ICcard authentication

Single machine offlineoperatib n, networked Operating mode

operation, support for local comparison or server comparison

Palm brushing mode

Patmverticalbrush

Native sto rage l: N supports 1H010 people

(customizable according to user preferences) user capacity

Native sto rage l: I supports 30000 people

customizable according to user preferences) Recognition Time

<0.5s, fastest 0.1s(20000 data) Recognition

8-15cm(slight deviation in recognition distance distance

based on palm size) Adaptation angle

Palm rotation: 180°,±90°； Palm tilt:±30" Encryption

technology

AES, key length exceeds 256 bits Recognition

Falseacceptance rate (FAR): <0.00001%, false accuracy

rejection rate(FRR):<0.01% Logging capacity

Latest records in 6 months (customizable according to user preferences)

Support intelligent access control system

artendance and visitor management system compatibility

Provide com munication protoco land support secondary development

display screen

8-Inch touch screen Deviceinterface

RJ45 network port, RS485, RS232, I relay output, 1 optocouplerinput

powerinput

DC12V/2A networksupport

4G, 5G, WIFI network modes Operating

temperature

-12C-60'C Operation

Humidity

10%RH-90%RH(No condensation) size

273mmx137mmx25mm Installation

indoor

installation

(standard environment

configuration); Outdoor installation (optional) Installation

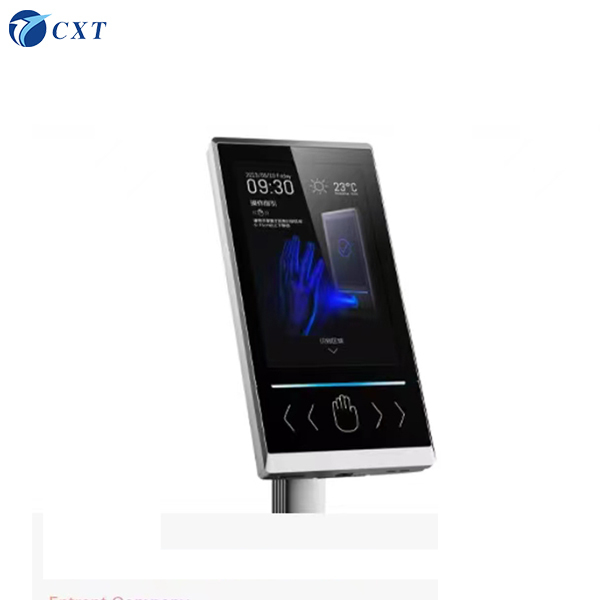

Wall mounted, desktop mounted, column method

mounted, gate mounted
