Global best-selling anti-climbing and anti-drilling fully automatic 1.8m face recognition brushless motor sliding gate 510Z

Sharp Angle Sliding Turnstile Core Features:

• High safety with 2.3-meter height
• All round personal security with double anti-pinch protection
• Intelligent & Advanced Passageway Security Concept
• Strong & Stable Control Core

Arc-Shape Sliding Turnstile Technical Parameter

• Housing material: Stainless steel 304
• Housing processing work-craft: Adopt bend, cut, weld, polish and etc.

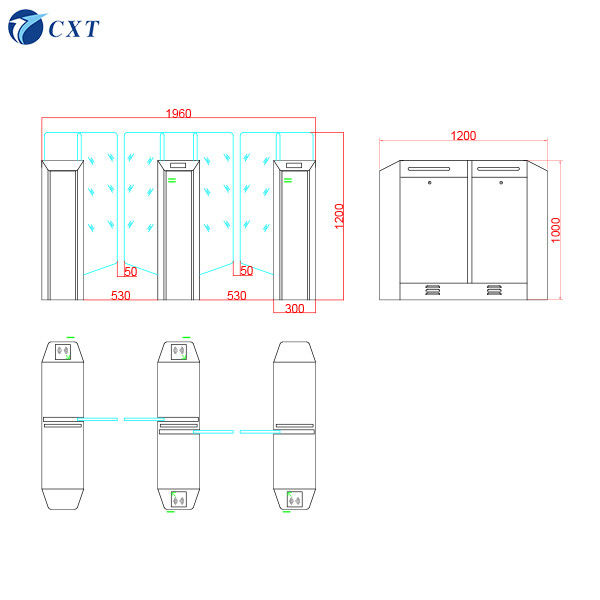

• Specification and size: 1400*300*1000mm (adjustable per order)
• Weight: per different models(about 60-90kg)
• Arm length: 235mm(adjustable per order)
• Lane width: 520mm(adjustable per order)
• Barrier height: 800-1800mm(adjustable per order)
• Flow rate: 30-40person/minute
• Voltage: AC220 ±10V / 50 ±10% HZ
• Drive motor: DC motor(50W24V)
• Input interface: Standard communicate signal
• Gate open and close gap: 0.5-1s
• Booting time: 3s
• Suitable temperature: -40℃ ～ 80℃.
• Suitable humility: 5％—— 95％
• Working environment: Indoor and outdoor,
• door access systems

Sharp Angle Sliding Turnstile Main Function:

• Alert via Sound and light when system breakdown etc.,
• Flexible code settings on turnstile control board and it has about dozens of types working mode for your selection.
• Infrared and mechanical anti-clamping provide double protection. When a sudden impact force is applied during system reset, the gates will automatically stop or rebound, sending out alarm signal at the same time.
• Various alarm patterns, including unauthorized intrusion, reverse passing, anti-trailing, and overtime passing alarm etc.
• Impact resistant, without receiving the open signal, turnstile arm auto locks.
• Reverse passing, when somebody attempts to passing reversely, the arm quickly shuts at the same time and alert.
• Flexible access instruction function, high brightness light, and its humanized prompt function make the passageway more characteristic.
• Adjustable for modes of always open and always close can easily adjust via code-setting on the turnstile control board or external manual button controlling.
• Automatic detection and reset function: the access door systems will automatically cancel the access permissions when no objects passing is detected within the prescribed time (adjustable).
• The turnstile opens automatically to evacuate people in the event of an emergency, such as fire, power failure, etc.
• Can be linked to the variety of external control equipment, receiving the signal for the turnstile.
• Uni-directional and bi-directional access control can be manual seting.
• Strong environment adapting ability, Turnstile can be working properly in harsh environments, with strong ego defense ability. Withstand with weak current, short circuit, humid, rain and snow weather, typhoon or even other environmental change.
