Brushless motor intelligent anti-collision, anti-climbing and anti-drilling Full Height Turnstile CXT-C1701F-90

CXT-C1701F-90 Single-door turnstile

Main functions and features of full-height turnstile

1) It has fault self-checking and alarm prompt functions, which is convenient for users to maintain and use;
2) It can be connected to an external switch button or remote control to achieve one-way or two-way control of passage;
3) It has an automatic reset function. When the gate bar is unlocked, it rotates 120 degrees/90 degrees, which means it automatically resets (locks). Or if the user does not pass within the specified time, the system will automatically cancel the user's right to pass and automatically close (lock), and the delay is adjustable at 2S, 5S, 10S, and 60S.
4) Anti-collision function, when no gate opening signal is received, the fence bar will automatically lock;
5) Anti-tailgating function, when one person passes, it will turn 120 degrees/90 degrees and automatically lock;
6) Automatic normally open function when power is off to meet the requirements of fire management;
7) It can be connected with a variety of card reading devices and receive relay switch signals to work;
8) One-way and two-way passage function, which can control the entry and exit of personnel in one direction or two directions;
9) Adopting the optical working principle, there is no delay requirement for the input control signal, and it is absolutely avoided that several people pass through with one card;
10) The external button can realize the left and right normally open function;
11) The external button can realize the uninterrupted power-on normally open function;
12) Remote control and management can be realized directly through the management computer (need to be customized);
#Source strength manufacturer #Professional matters are handed over to professionals #Quality first and integrity is the basis undefined head portrait innovation communication share iframe embedded player:
13) The control board can be connected to the counting function to record the number of people present and realize the forward addition and reverse subtraction functions (need to be customized).

Face recognition turnstile,Card swipe turnstile,QR code turnstile,Application of turnstile,Turntile manufacturer,Turntile system solution,Repair of turnstile,Maintenance of turnstile,Installation of turnstile,Turntile case,Turntile picture,Is turnstile expensive?,How much does a turnstile cost?, Turntile agent,Fingerprint turnstile,Turntile access control system,Office turnstile,Turntile parameters,School turnstile,Precautions for using turnstile,Turntile brand,Turntile manufacturer,

Turntile manufacturer,Turntile ticket inspection system,Turntile channel,Community turnstile,

Working principle of turnstile,Scenic area turnstile,Station turnstile,Airport turnstile, Single-movement turnstile,Dual-movement turnstile,Outdoor turnstile,Indoor turnstile, Anti-collision turnstile,Waterproof turnstile,Pedestrian passage turnstile,Innovation turnstile, Brushless turnstile,Anti-collision turnstile,Fully automatic turnstile,Factory turnstile,

Standard technical parameters of full-height turnstile

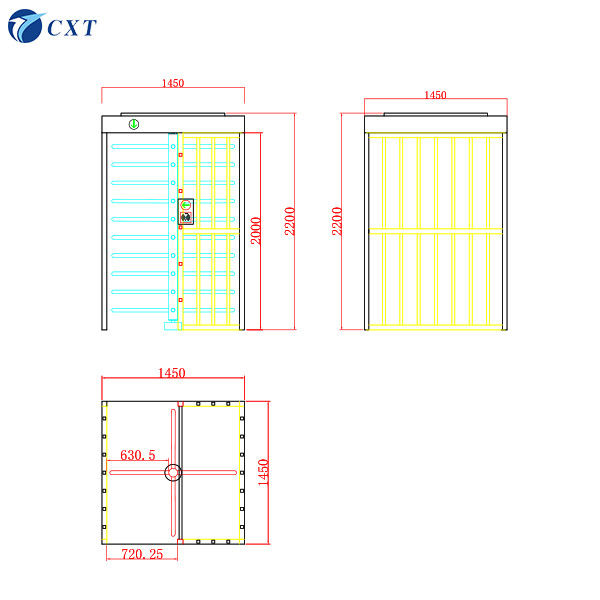

Chassis size: 90 degrees: 1450*1450*2300mm
The outer frame can be customized according to the door opening conditions on site.
Channel width: 570-800mm
Single machine weight: about 200KG
Chassis material: National standard 304 stainless steel frame structure
Processing technology: bending, cutting, welding, polishing, grinding and other processes
Working environment: indoor and outdoor
Power supply voltage: AC220±10% V, 50HZ
Drive motor: DC motor (50W/12V)
Motor speed: 1600 rpm
Input control interface: relay switch signal
Normal service life: 6 million times
Passing speed: 20-25 people/minute
Time required to enter the passing state after power-on: 3 seconds
Automatic reset time after a fault: 10 seconds
Temperature: -40℃—80℃
Humidity: 5%--95%
