Name: Stable Brushless Motor Tripod Turnstile Gate with Alarm Prompt Functions and 304 Stainless Steel Construction
Brand: Shenzhen CXT Technology & Development Co., Ltd.
SKU: CXT-SW128YX
Price: 1,795.00 USD
Availability: InStock

Home > Products > Tripod Turnstile Gate >

Stable Brushless Motor Tripod Turnstile Gate with Alarm Prompt Functions and 304 Stainless Steel Construction

Stable Tripod Turnstile Gate

Convenient Tripod Turnstile Gate

Convenient Electronic Turnstile Gates

Place of Origin:

shenzhen

Brand Name:

cxt

Certification:

Single label product appearance patent

Model Number:

CXT-SW128YX

Request A Quote

Product Details

Warranty:

12 Months,One Year,3 Year

Passing Speed:

30people/min,35 Person/min

Weight:

45kg,45.00Kg

Interface:

RS485,TCP/IP,Dry Contact,Switch Signal

Communication:

RS232,RS485 Communication

Keyword:

Turnstile Price,Tripod Turnstile,turnstile Door

Power Voltage:

AC220V/110V±10%,50Hz/60Hz,50Hz

Highlight:

Stable Tripod Turnstile Gate

Convenient Tripod Turnstile Gate

Convenient Electronic Turnstile Gates

Payment & Shipping Terms

Minimum Order Quantity

Price

90~3500USD

Packaging Details

Cartons and wooden boxes

Delivery Time

20 working days

Payment Terms

Public Account

Supply Ability

500ps

High Performance 304 Stainless Steel Tripod Turnstile Gate with 510mm Arm Length and 1200220980mm Specifications

Get Best Price

Video

Bi-directional Tripod Turnstile Gate DC Brushless Motor 35p/m Throughput

Get Best Price

Video

Intelligent Automatic Tripod Turnstile Gate with RS485 Communication 20-30 Persons/Minute 1500x280x980mm

Get Best Price

Video

Bridge Type Tripod Turnstile Gate Fully Automatic with RS485 Interface and 40 Persons/Min Capacity in 1200x280x980mm Size

Get Best Price

Contact Now

Product Description

Stable Tripod Turnstile Gate with Alarm Prompt Functions

CXT-SW128YX Brushless Motor Intelligent Tripod Turnstile

Model	CXT-SW128YX

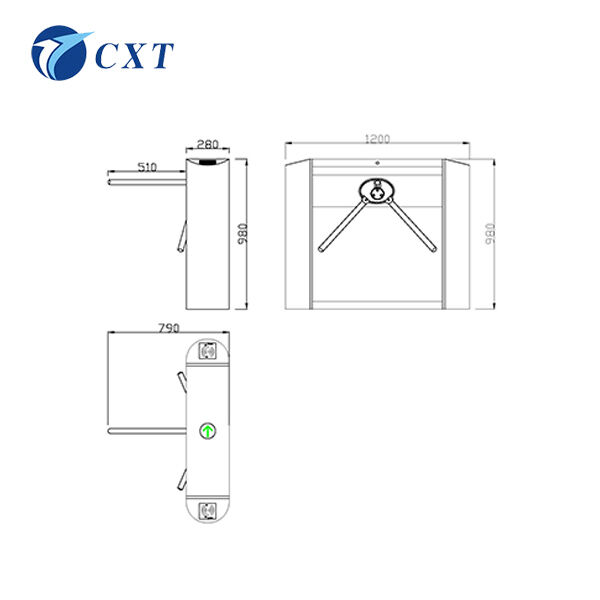

Specifications	1200280980
Rod Length	510mm
Process	Produced by bending, cutting, welding, polishing, and grinding
Material	National standard 304 stainless steel (201 stainless steel, iron paint can be customized)

Smart Inclined Three-Roller Turnstile Features

Fault self-checking and alarm prompt functions for easy maintenance
Compatible with any control signal, button, or remote control for single-way and two-way passage control
Configurable single-way and two-way free passage settings
Automatic reset function with adjustable delay timing
High-brightness traffic light status indication for passage guidance
Anti-tailing function with automatic lock and alarm for unauthorized following
Fire alarm signal integration for uninterrupted power-off and normal gate opening
Memory function for accurate signal processing and improved passage speed
Alarm prompt for illegal passage or gate rushing
Anti-reversal function with automatic lock and alarm
Anti-buffer function for injury prevention during unauthorized passage
Unattended operation with automatic gate bar positioning during power cycles
Dynamic prompt with gentle rotation for user-friendly operation

Expansion Capabilities

Remote control and management through management computer
Counting function for real-time people counting
Personalized voice prompt function

Technical Comparison

No	Name	Common Series	Pentium Series
1	Rotation Mode	Push	Electric
2	Positioning Principle	Optical Coupling Fixed Point	1/500 Decoding
3	Positioning Mode	Horizontal Position	Not Locked
4	Transmission Mode	Solenoid Valve	Motor
5	Lifting Rod Mode	Manual	Automatic
6	Buffer	No	Yes
7	Anti-Reverse	No	Yes
8	Noise	High	No
9	Mechanical Wear	High	No
10	Illegal Alarm	No	Yes
11	Passage Prompt	No	Yes
12	Service Life	1-3 Years	5-10 Years
13	Door Rod Thickness	￠32	￠38
14	Power Off Drop	Yes	Yes
15	Memory	Yes	Yes
16	Fire Input	Yes	Yes
17	Feedback Signal Output	Yes	Yes

Frequently Asked Questions

Will you install the channel lock for the first time?

Channel brake installation is very simple. Just fix the product properly, connect the main machine to 110V/220V power supply, and it can be used normally. If you need to connect to the internet, simply use a network cable to connect to the main computer. We provide one-on-one phone technical guidance services.

Can machines be used outside?

Yes, it can be used outside. All our machines have waterproof function.

What is the warranty for the machine?

(1) We guarantee all goods quality assurance for two years.
(2) Within the two-year warranty period, if the machine has problems, we can provide accessories (you pay the freight cost).

When will you make the delivery?

Regular products: 3-5 days. Irregular products: communication when you place the order.
