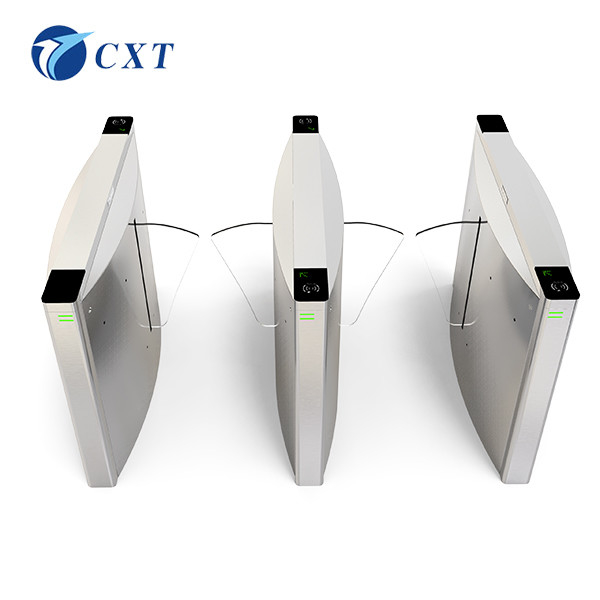

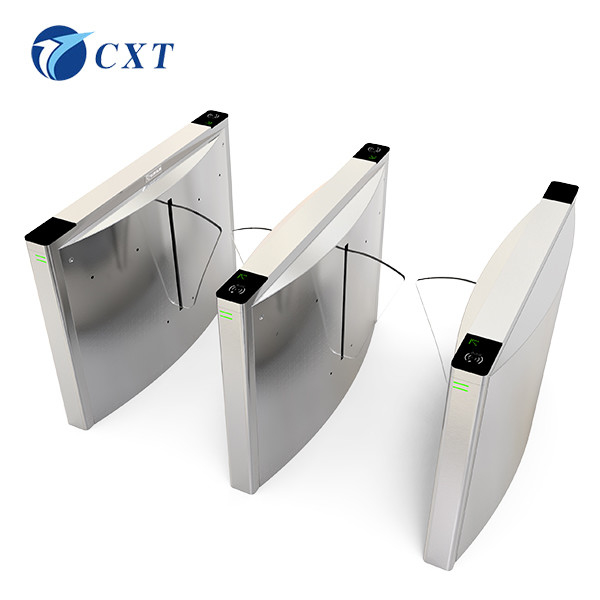

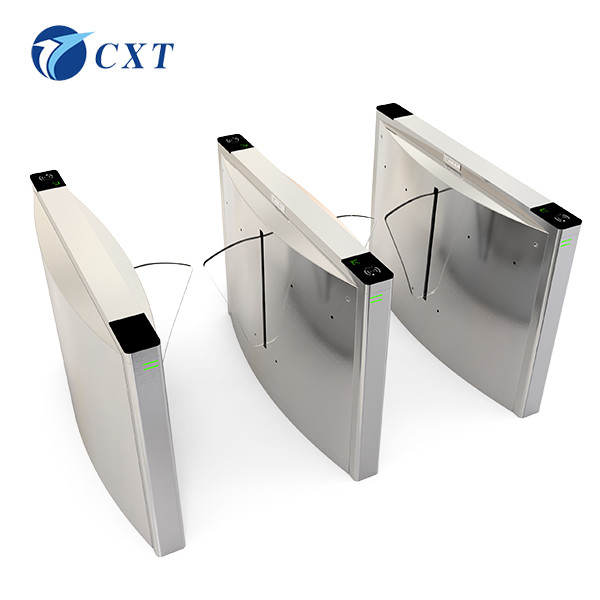

Clubhouse Brushless Motor Automatic Flap Barrier Gate/ Wing Gate CXT-YW140C

Wing Gate CXT-YW140C

The innovative brushless fast-pass wing gate is a new high-tech patented channel product that is upgraded to address the defects and deficiencies of the general series of wing gates. The product adopts a new ARM control system and advanced brushless motor industrial-grade control circuits and unique DFC technology, coupled with the unique transmission technology and accurate limit technology of the brushless motor, which makes the product revolutionary in terms of performance, life, speed, noise, stability, etc.
The new generation of brushless fast-pass wing gates has more unique advantages than general wing gates:
l Adopting brushless motor technology, the life is longer;
l Adopting ARM control technology and DFC technology, it has more powerful functions and better scalability;
l Faster speed, the switching speed can reach ≤0.5S;
l Smaller sound, up to ≤30 decibels;
l Smoother operation, that is, no shaking, no shaking, no echo.

Import wing gate,Export wing gate,Top ten brands of wing gate,Face recognition wing gate,

Card swipe wing gate,QR code wing gate,Application of wing gate,Wing gate manufacturer,

Wing gate system solution,Wing gate repair,Wing gate maintenance,Wing gate installation,

Wing gate case,Wing gate picture,Is the wing gate expensive?,How much is the wing gate?,

Wing gate agent,Fingerprint wing gate,Wing gate door access control system,Office building wing gate,Wing gate parameters,School wing gate,Precautions for using wing gate,Wing gate brand,

Wing gate manufacturer,Wing gate manufacturer,Wing gate ticket checking system,Wing gate channel,Community wing gate,Wing gate working principle,Scenic area wing gate,Station wing gate,Airport wing gate,Single-opening wing gate,Double-opening wing gate,Outdoor wing gate,Indoor wing gate,Anti-collision wing gate,Waterproof wing gate,Wing gate for pedestrian passage,Innovative wing gate,Brushless wing gate,Anti-collision wing gate

1. Functional description

l It has fault self-check and logic judgment functions, which is convenient for user maintenance and function debugging;
l It can flexibly set various performances, up to dozens of types, and is easy to expand;
l Triple anti-pinch function (infrared anti-pinch, mechanical anti-pinch, and rebound when encountering obstacles);
l Multiple mode alarm functions, including illegal intrusion, anti-intrusion, tailgating, and passage timeout alarms;
l Anti-collision function, when no gate opening signal is received, the barrier arm is automatically locked;
l Reverse intrusion closing alarm function, when someone enters from the reverse direction after swiping the card in the forward direction, the barrier wing will close quickly and issue an alarm at the same time;
l Flexible passage indication function, high-brightness indicator light plus its humanized prompt function, make the channel more distinctive;
l Normally open and normally closed modes are adjustable, and can be easily controlled by settings or external manual buttons;
l Automatic detection and reset function, after opening the gate, if no object is detected within the specified time (adjustable) to pass, the system will automatically cancel the passage authority;
l Automatic normally open when power is off to meet fire protection requirements;
l It can be connected with a variety of control devices and receive relay switch signals to work;
l Various traffic modes, can control personnel entry and exit in one direction or two directions, or be controlled in one direction and freely pass in the opposite direction;
l Strong ability to adapt to the environment, can work normally in various harsh environments, super strong self-protection ability, can adapt to weak current short circuit, strong light exposure, fog, rain, snow, typhoon weather and environmental changes.

2. Technical parameters

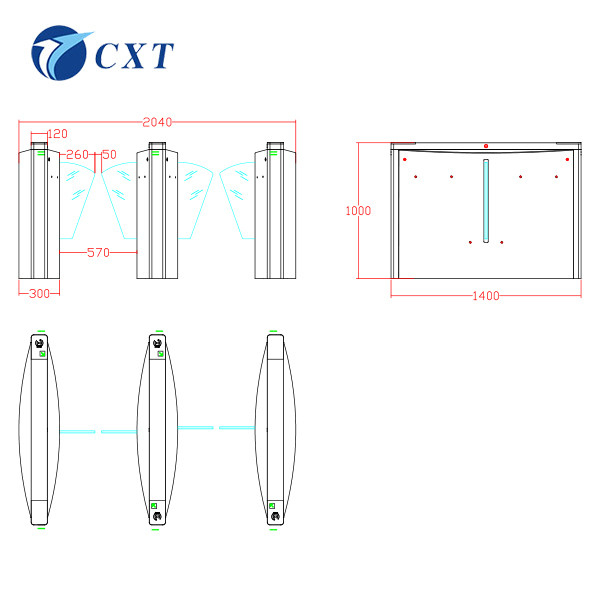

u Chassis size: 1200 length * 300 width * 1000 height (MM) / according to various styles
u Processing technology: produced by bending, cutting, welding, polishing, grinding and other processes
u Telescopic arm: extended width of about 260mm, thickness of 12-15MM, transparent organic board (optional soft wing)
u Passage width: 550-600MM
u Machine weight: about 50Kg (single movement), about 70KG (double movement)
u Chassis material: standard 304 stainless steel frame structure
u Working environment: indoor or outdoor (with rainproof rack)
u Access voltage: AC220±10V,50HZ
u Drive motor: DC brushless motor (40W/24V)
u Input interface: relay switch signal
u Normal service life: ≥10 million times
u Humidity: 5%--90%, working temperature: -40℃—— 80℃
u Passing speed: 30-40 people/minute
u Gate opening and closing time: 0.4-1 second adjustable
