Customs brushless motor fully automatic ticket inspection IC card swiping Wing Gate CXT-YW360H

Wing Gate CXT-YW360H

Model: CXT-YW360H

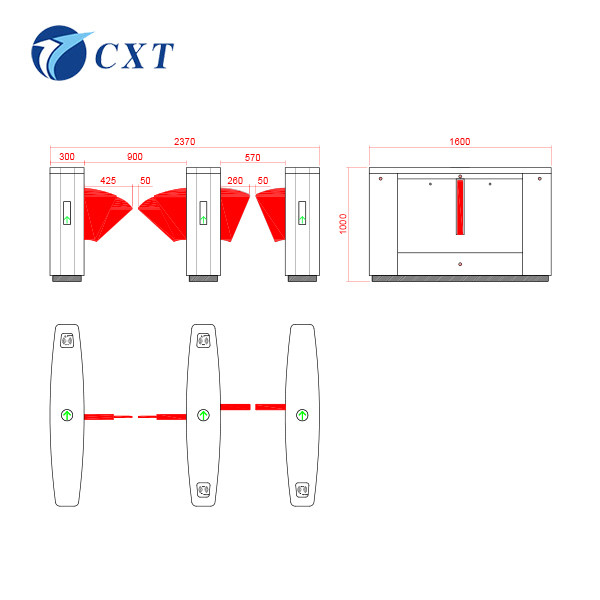

Specifications: 1600*300*1000mm Rod length: 260mm (single)
Process: produced by bending, cutting, welding, polishing, grinding and other processes
Material: National standard 304 stainless steel (can be customized 201 stainless steel, iron paint)

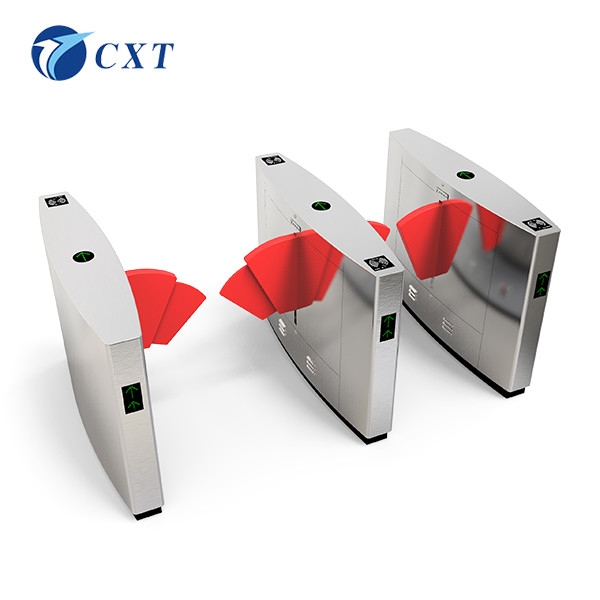

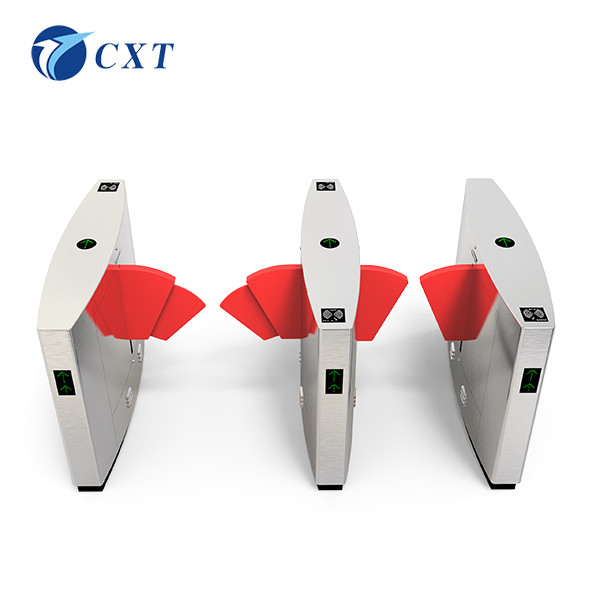

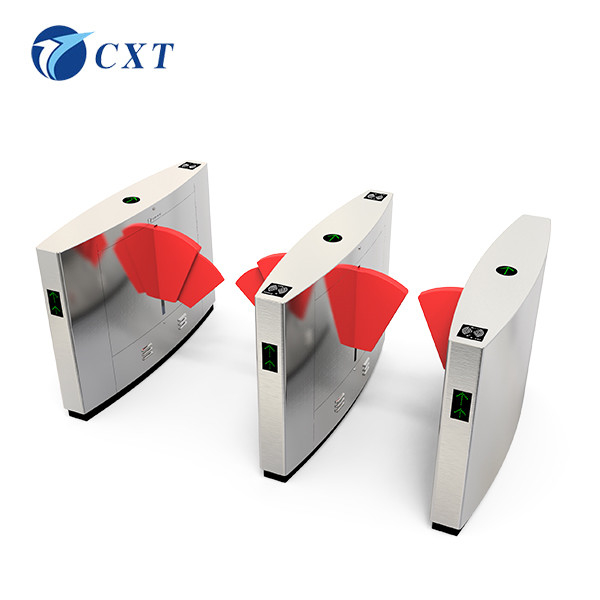

CXT-YW360H Large Arc Mother-and-Child Wing Gate Dual Channel Gate
Function Introduction
1) The large arc mother-and-child wing gate has fault self-detection and alarm prompt functions, which is convenient for user maintenance and use.
2) It can be connected to any control device output control signal or button or remote control to realize single and two-way control of passage.
3) Automatic reset function: After each 90-degree extension and detection of people and objects passing through, it will automatically reset, or if no passage is made within the specified time (delay is adjustable in multiple gears), the system will automatically cancel the passage permission and return to the initial position.
4) Light indication: High-brightness traffic light status indication to guide passage.
(5) Large arc mother-and-child wing gate anti-tailing function:
When the person or object in front passes, during the process of swinging wing reset, if someone follows or rushes through the gate, an alarm will be issued.
When equipped with infrared detection, if the person or object in front does not pass completely, if someone follows and breaks in, the infrared will trigger an alarm.
When someone swipes the card in the forward direction and someone breaks in in the reverse direction, the swing wing will close. When the person or object exits, the swing wing will open again to allow forward passage.

6) Fire input: It can be connected to the fire alarm signal to achieve uninterrupted power supply and normal opening.
7) Alarm prompt function: When illegal passage or gate rush occurs, an alarm prompt will be automatically issued.
8) Adjustable speed: The speed of opening and closing of the swing wing can be adjusted in 8 gears, and the user can set it according to actual needs.
9) Automatic protection function: When external force prevents the normal movement of the swing wing, and the external force is continuous, the system will automatically detect 5 times and then automatically protect and enter the dormant state. When the next legal signal is input, the gate will automatically return to normal. 10) Anti-collision buffer function: When illegal passage or forced tailgating occurs, when someone or an object blocks the swing wing, humanized injury prevention is achieved. It also greatly reduces mechanical damage caused by collision.
11) Unattended: The swing wing is automatically open when the power is off, and automatically reset (blocking passage) when the power is on.
12) Fast and silent: electric power, zero mechanical wear. About 45-60 people/minute

Large arc mother-and-child wing gate can be expanded:

1. Remote control and management through the management computer (command docking is required).

2. Counting function to realize the statistics of the number of people present and ensure accurate counting after people pass through.

3. Personalized voice prompt function makes the channel closer to life.
